Airbag-Side Thorax-Right (D6680A)

Harness-Family: SAB_Pass

Color: AQUA

Gender: MALE

Part Number: ~~

Part Description: Not Available

Connector No: D6680A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Airbag-Side Thorax-Right Connector End View

Courtesy of CHRYSLER

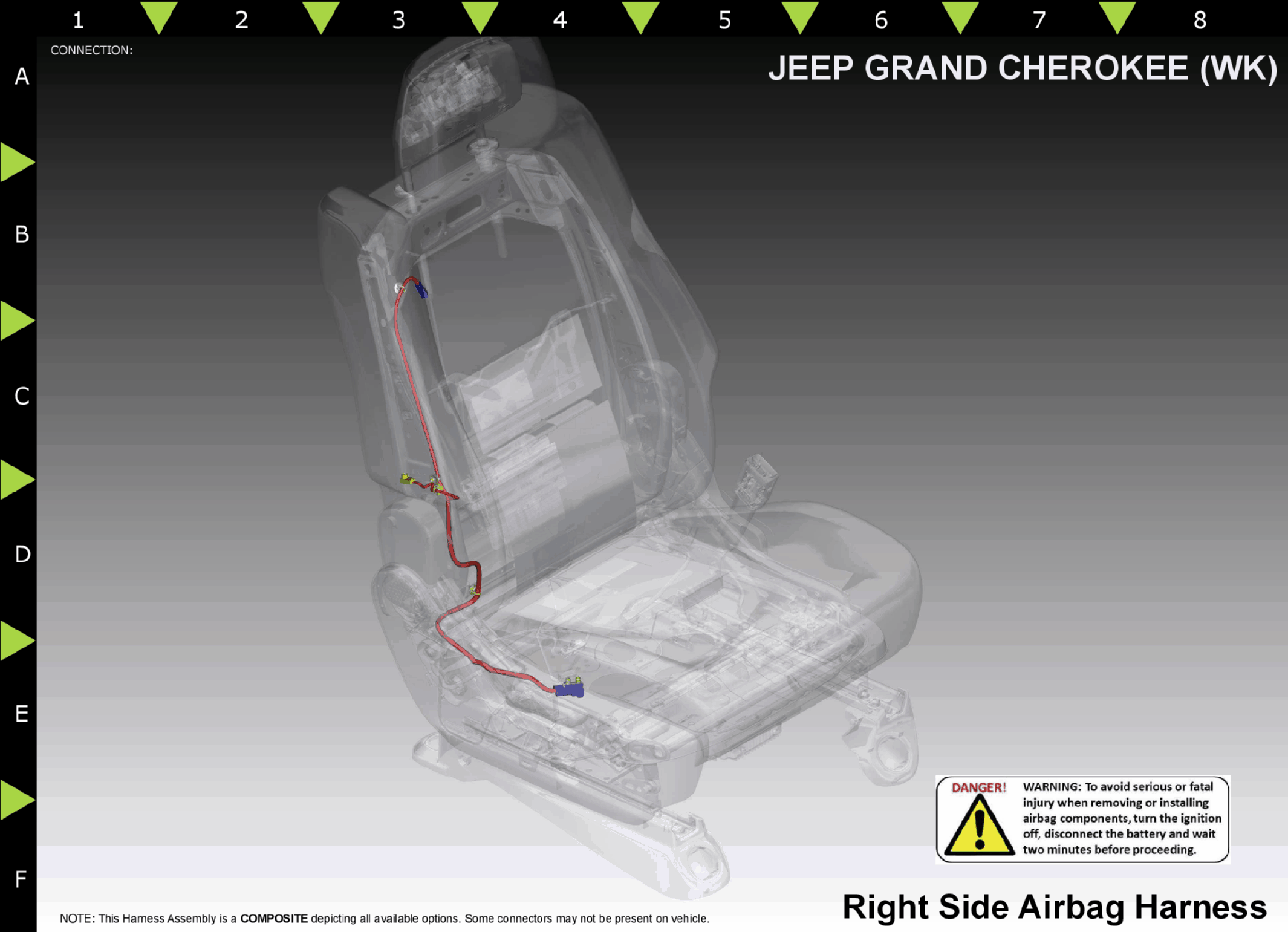

Fig 2: Airbag-Side Thorax-Right Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

VT/LB

RIGHT SEAT THORAX SQUIB 1 LINE 2

N/A

GY/LG

RIGHT SEAT THORAX SQUIB 1 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
