Actuator-Swirl (D11A)

Harness-Family: Swirl_Jumper

Color: ~~

Gender: FEMALE

Part Number: 805123541

Part Description: Not Available

Connector No: D11A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 5

Fig 1: Actuator-Swirl Connector End View

GCWD1006397

Courtesy of CHRYSLER

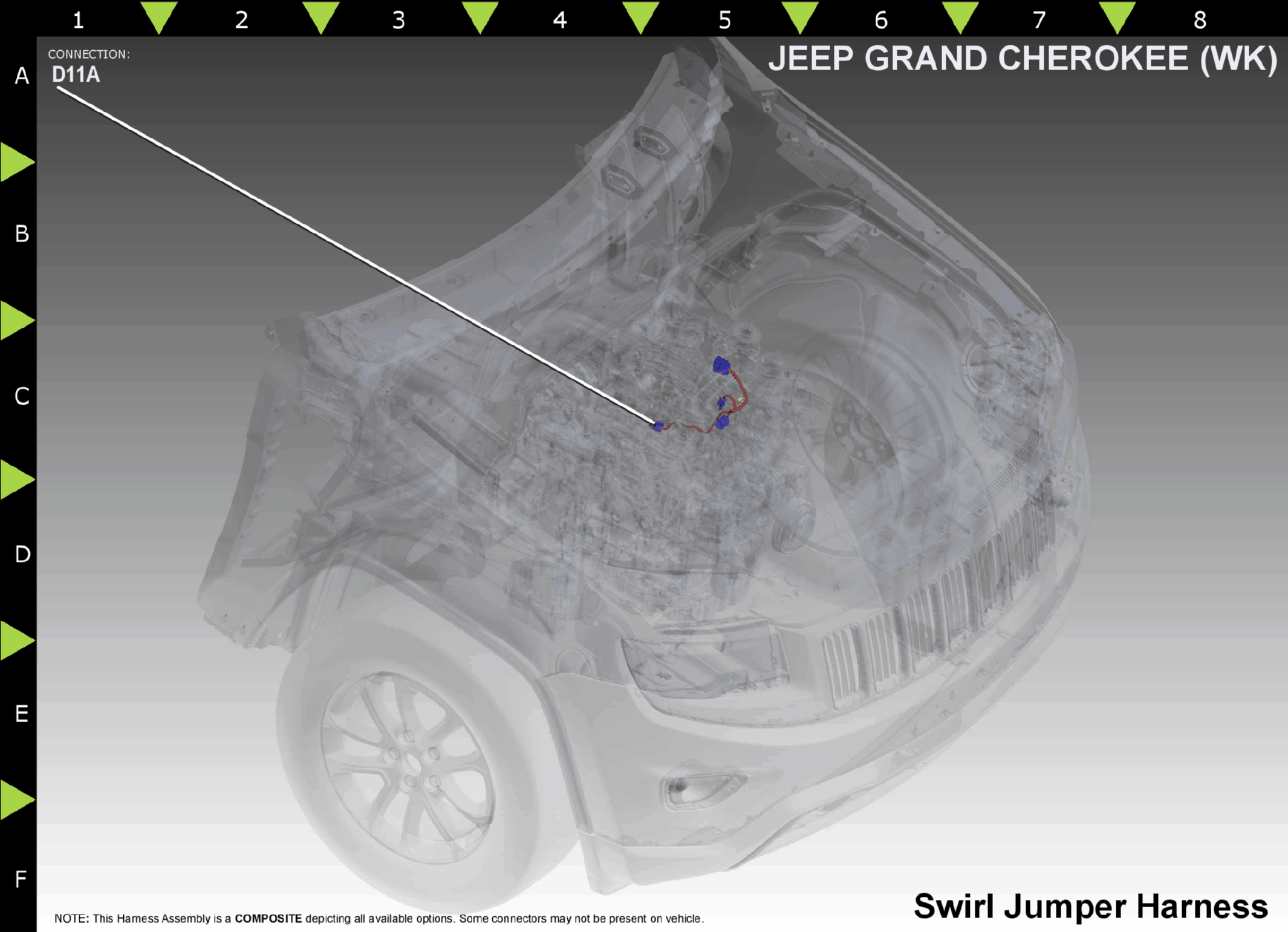

Fig 2: Actuator-Swirl Component Location

GCWD1001776

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

N117

DB

18

INTAKE SWIRL SERVO MOTOR CONTROL

N/A

3

K351

BR/RD

18

5V ACTUATOR SWIRL END POSITION

N/A

4

F343

BR/YL

18

FUSED ASD RELAY OUTPUT

N/A

5

K945

BR/RD

18

ACTUATOR SWIRL END POSITION RTN

N/A

⁽¹⁾	Pins not listed are not used for this connector
