Actuator-Mode Door 2 (Standard) (D34A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1355082-1

Part Description: MICRO QUADLOCK SOCKET HSG+ RETAINER KIT

Connector No: D34A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Actuator-Mode Door 2 Connector End View (Standard)

Courtesy of CHRYSLER

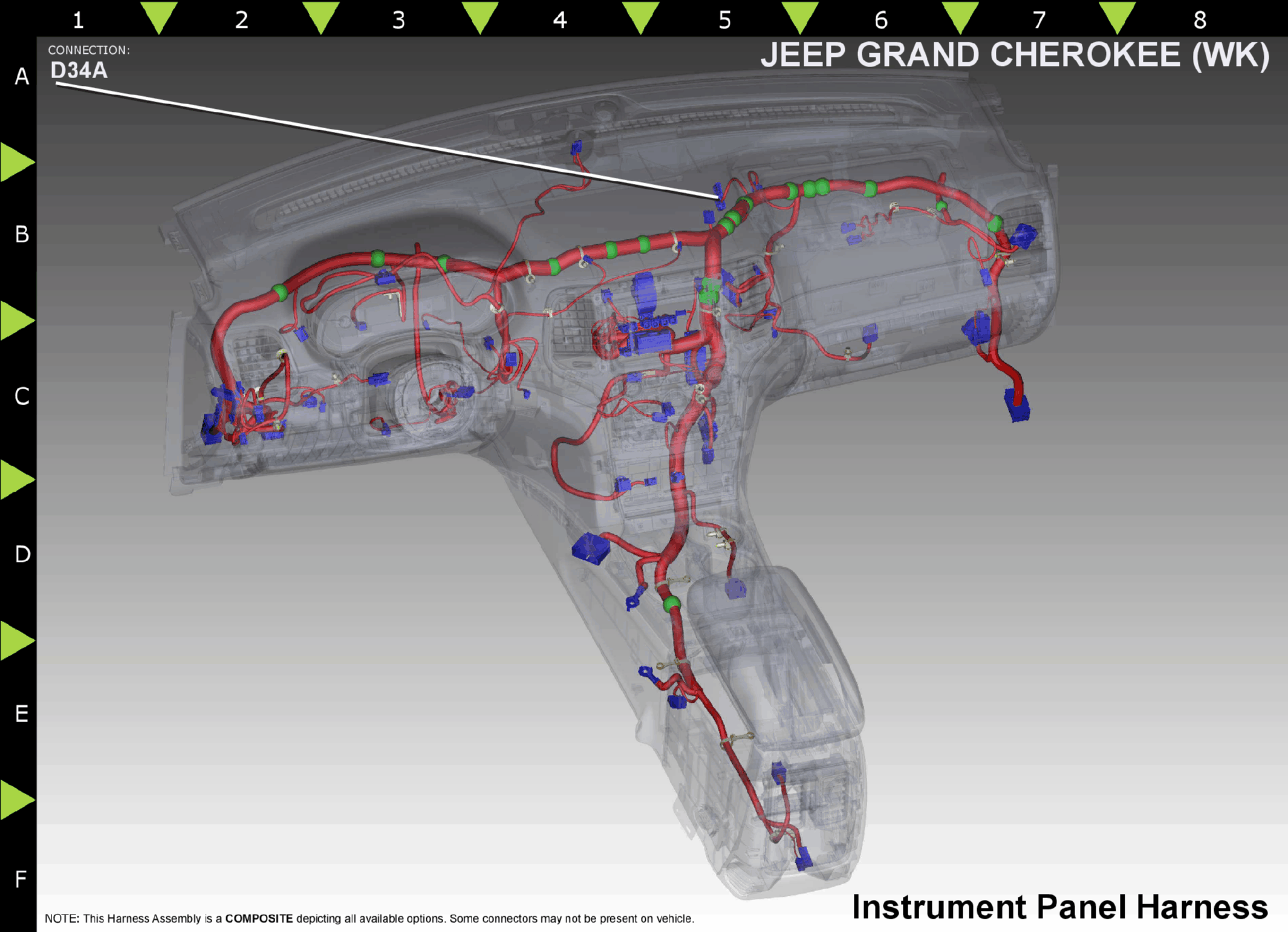

Fig 2: Actuator-Mode Door 2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C131

SENSOR GROUND

N/A

C245

LB/GY

RIGHT MODE DOOR DRIVER

N/A

C24

OR/LB

RIGHT BLEND DOOR FEED

N/A

C65

DB/LB

RIGHT MODE DOOR 2 COUNTER CLOCKWISE SIGNAL

N/A

C265

LB/DB

RIGHT MODE DOOR 2 CLOCKWISE SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
