Port-Auxiliary Audio Video (Standard) (D2375B)

Harness-Family: Video_Screen_Jumper

Color: BLACK

Gender: MALE

Part Number: TCX3413

Part Description: Not Available

Connector No: D2375B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 19

Fig 1: Port-Auxiliary Audio Video Connector End View (Standard)

Courtesy of CHRYSLER

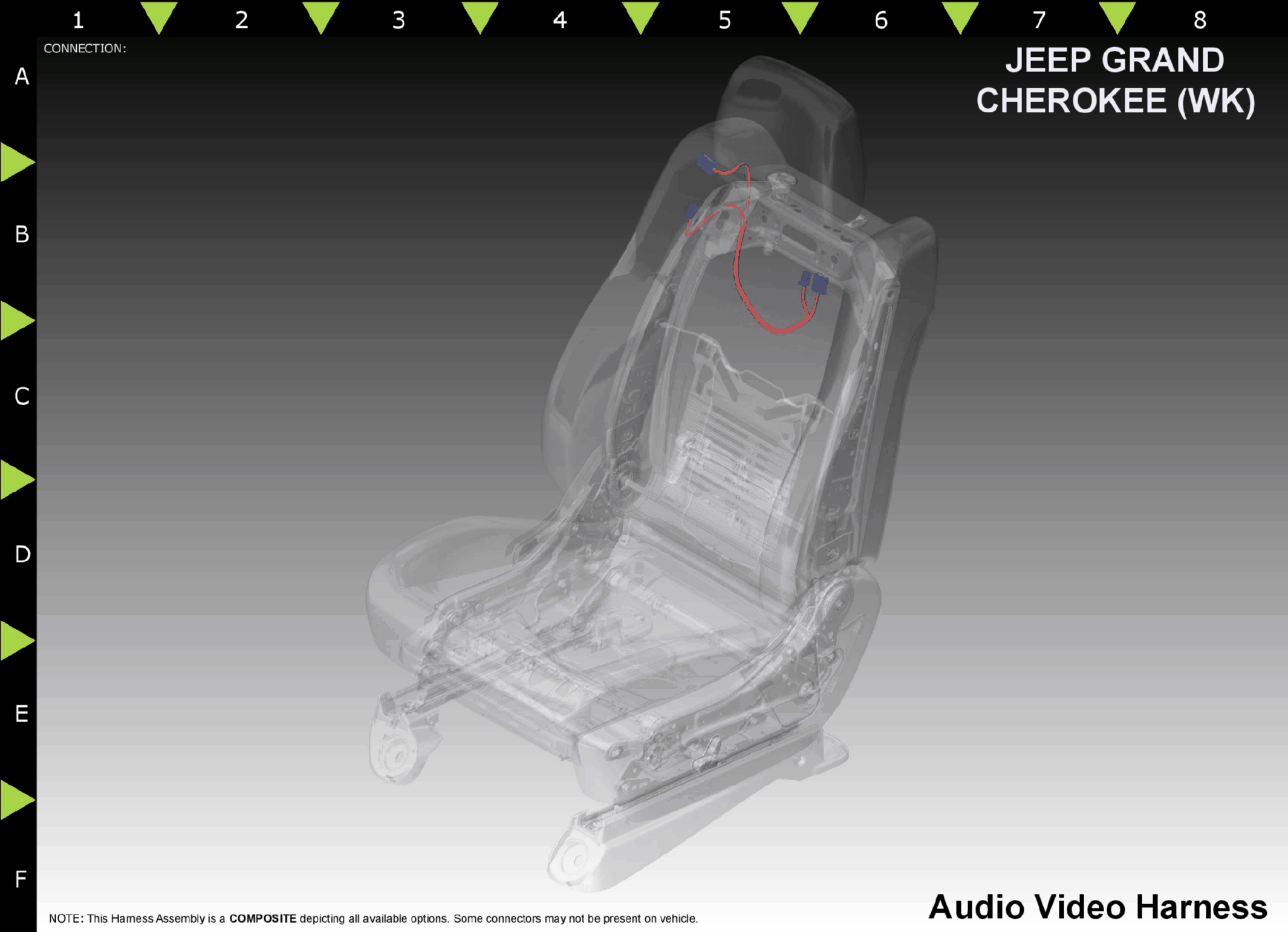

Fig 2: Port-Auxiliary Audio Video Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J10

HDMI CABLE

N/A

X511

GY/LG

AUX AUDIO LEFT SIGNAL NO. 1

N/A

X510

DG/LB

AUX AUDIO RIGHT SIGNAL NO. 1

N/A

X512

GY/OR

AUX VIDEO SIGNAL NO. 1

N/A

X910

GY/DG

AUX AUDIO COMMON NO. 1

N/A

X514

DG/DB

AUX AUDIO VIDEO SHIELD

N/A

X513

GY/TN

AUX VIDEO COMMON NO. 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
