Mirror-Inside Rearview C1 (AHBM) (D6625A)

Harness-Family: Mirror_Int_Jumper

Color: ~~

Gender: MALE

Part Number: 6098-3910

Part Description: Not Available

Connector No: D6625A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 10

Fig 1: Mirror-Inside Rearview C1 (ahbm) Connector End View

Courtesy of CHRYSLER

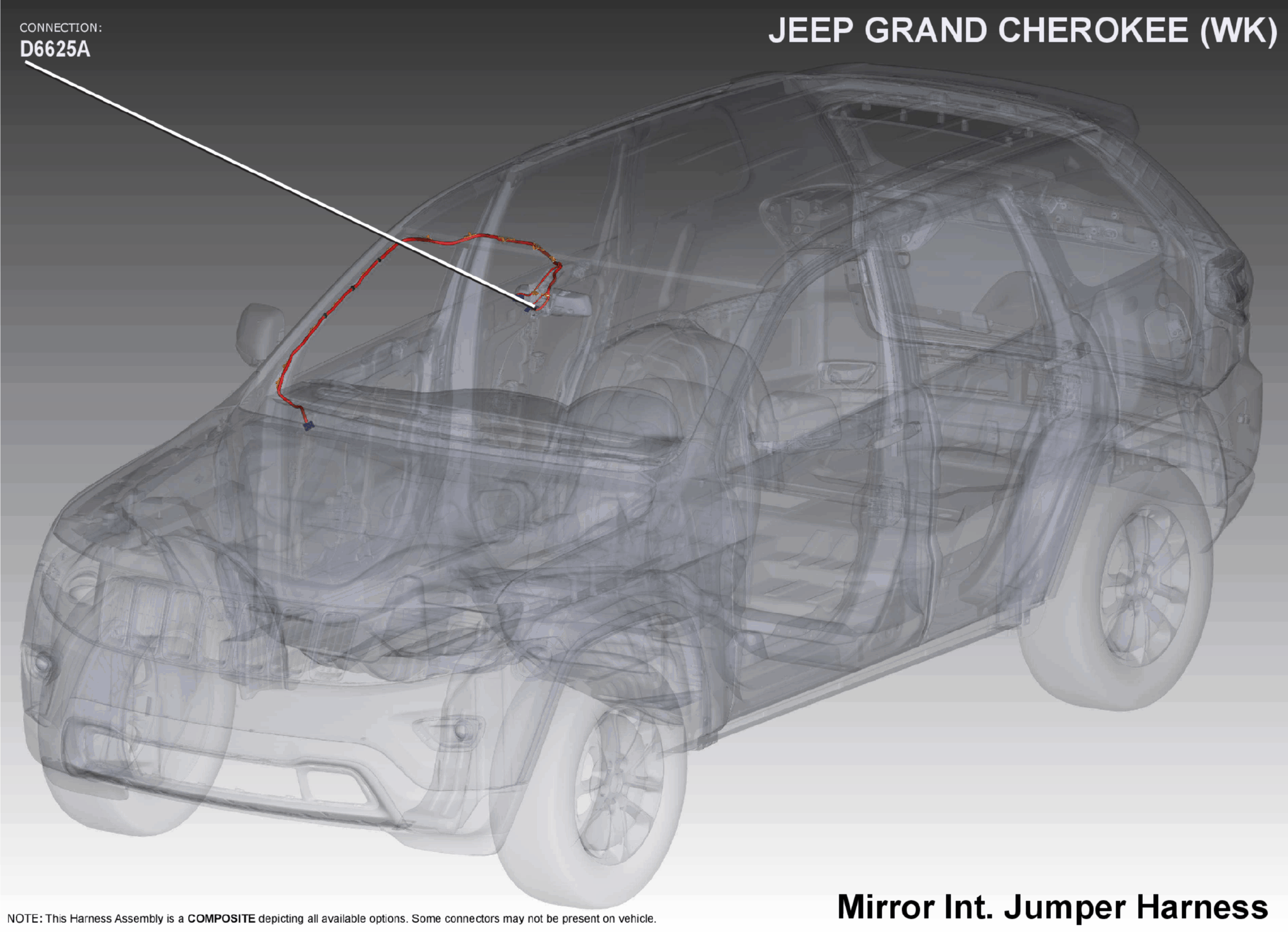

Fig 2: Mirror-Inside Rearview C1 (ahbm) Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D402

OR/VT

LIN BUS CBC 2

N/A

Z912

GROUND

N/A

F982

PK/YL

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

X723

LB/TN

HANDS FREE MICROPHONE 2 IN (-)

N/A

X722

TN/WT

MICROPHONE 2 IN (+)

N/A

X712

DG/LB

MICROPHONE 1 IN (+)

N/A

X792

WT/LG

MICROPHONE IN (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
