Heater-Seat Cushion-Right C2 (D6662B)

Harness-Family: Seat_Cshn_Pass

Color: BLACK

Gender: MALE

Part Number: ~~

Part Description: Not Available

Connector No: D6662B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Heater-Seat Cushion-Right C2 Connector End View

Courtesy of CHRYSLER

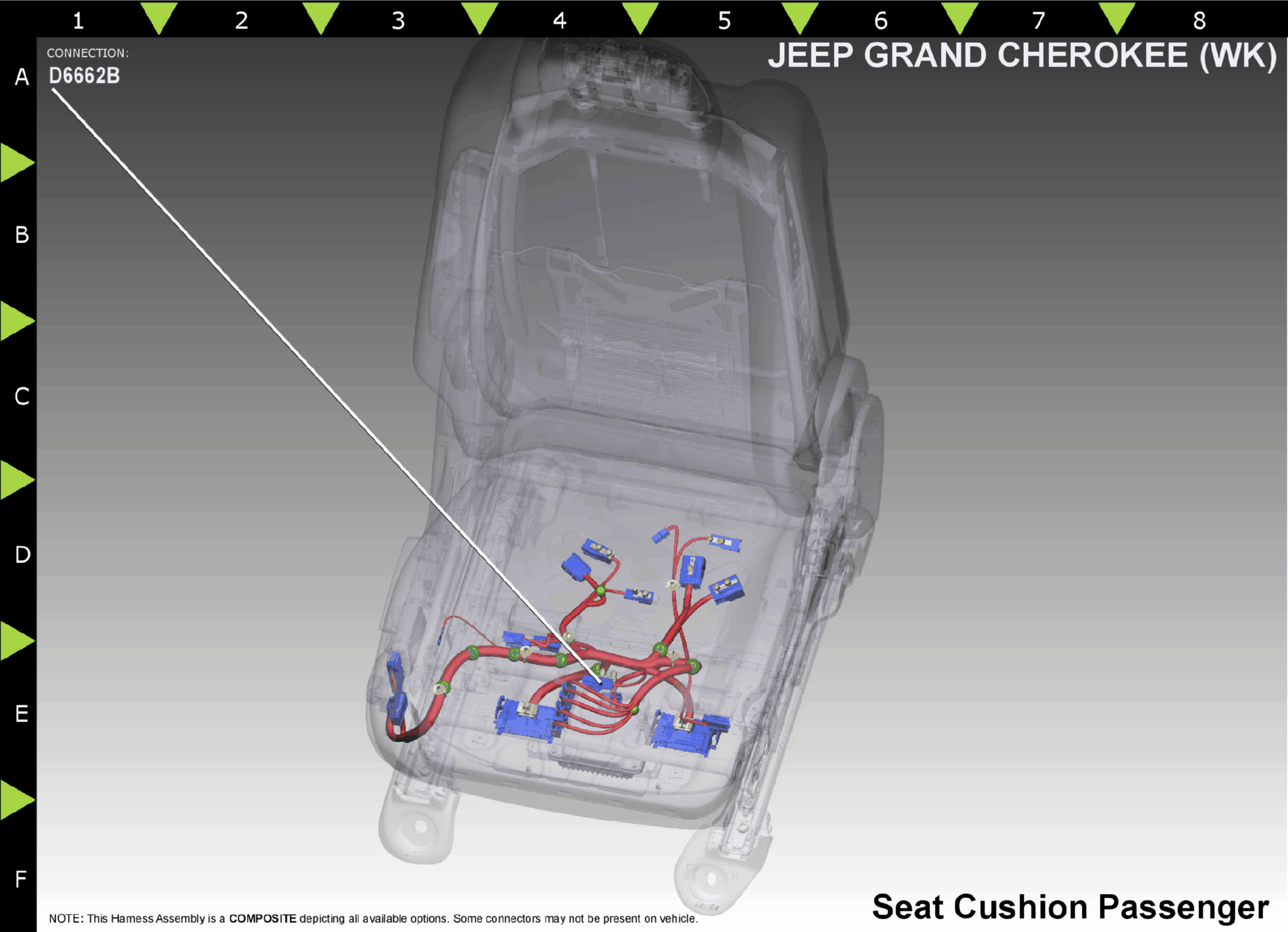

Fig 2: Heater-Seat Cushion-Right C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P422

LG/BR

RIGHT SEAT VENT FEED

N/A

P922

BR/LG

RIGHT SEAT VENT RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector

Harness-Family: Seat_Cshn_Pass

Color: BLACK

Gender: MALE

Part Number: ~~

Part Description: Not Available

Connector No: D6662B

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Heater-Seat Cushion-Right C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P422

LG/BR

RIGHT SEAT VENT FEED

N/A

P922

BR/LG

RIGHT SEAT VENT RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
