Heater-Seat Cushion-Left C1 (D6661A)

Harness-Family: Seat_Heater_Jumper_LT

Color: LIGHT GRAY

Gender: MALE

Part Number: 728264494

Part Description: Not Available

Connector No: D6661A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Heater-Seat Cushion-Left C1 Connector End View
GCWD1016910Courtesy of CHRYSLER

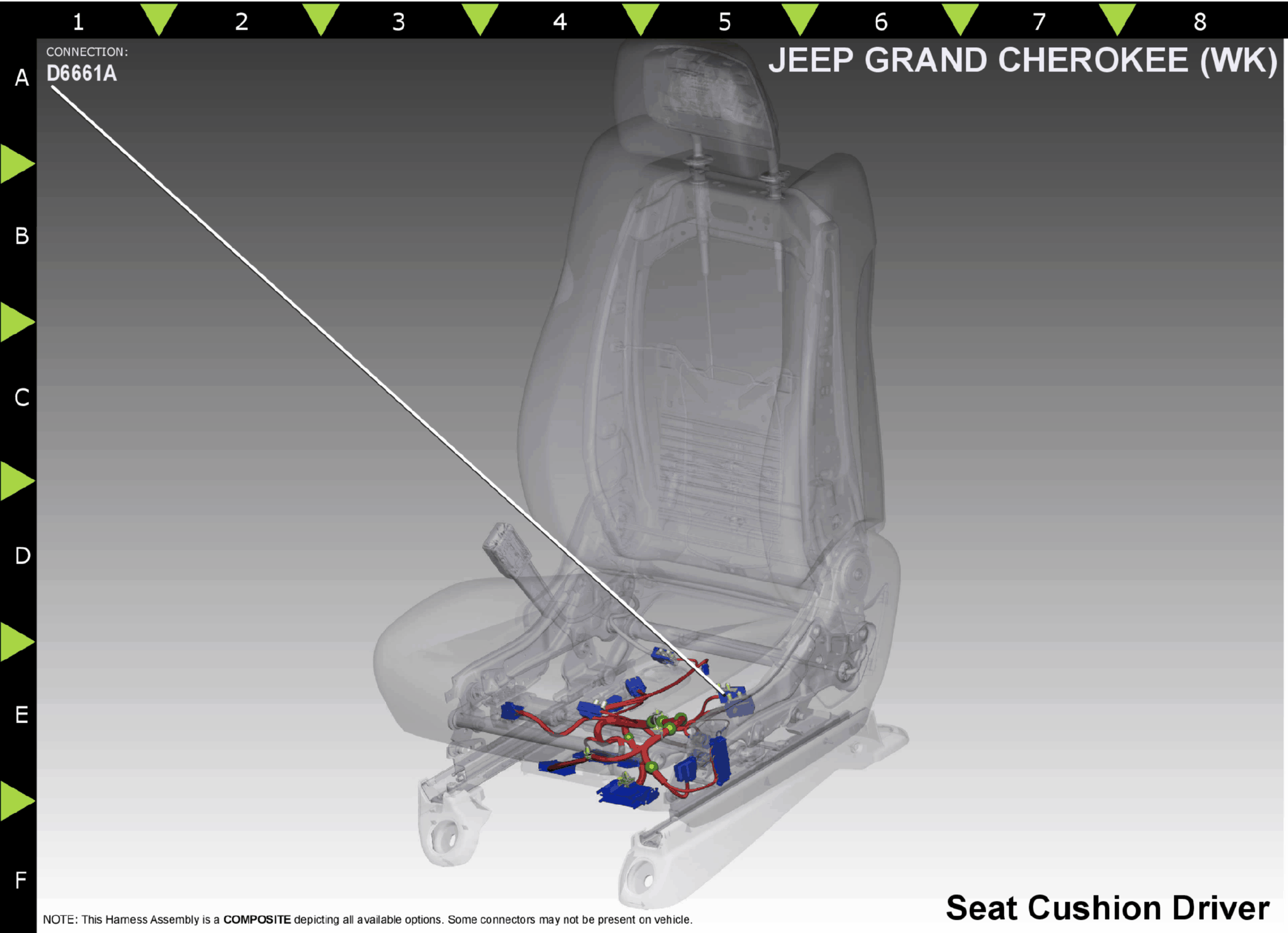

Fig 2: Heater-Seat Cushion-Left C1 Component Location
GCWD1005410Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P187 YL 18 LEFT FRONT SEAT HEATER CONTROL N/A
2 Z916 BK 16 GROUND N/A
3 P687 BK/RD 18 LEFT FRONT HEATED SEAT TEMP SENSE N/A
4 P968 BK/RD 22 HEATED SEAT SENSOR RETURN N/A
(1) Pins not listed are not used for this connector


Harness-Family: Seat_Heater_Jumper_LT

Color: LIGHT GRAY

Gender: MALE

Part Number: ~~

Part Description: Not Available

Connector No: D6661A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Heater-Seat Cushion-Left C1 Connector End View
GCWD1016910Courtesy of CHRYSLER
Fig 2: Heater-Seat Cushion-Left C1 Component Location
GCWD1005410Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P187 YL 18 LEFT FRONT SEAT HEATER CONTROL N/A
2 Z916 BK 16 GROUND N/A
3 P687 BK/RD 18 LEFT FRONT HEATED SEAT TEMP SENSE N/A
4 P968 BK/RD 22 HEATED SEAT SENSOR RETURN N/A
(1) Pins not listed are not used for this connector
