Heater-Cabin (EAH, PTC) (D6715A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1544551-1

Part Description: CONNECTOR FOR 6.35 NG1 TERMINAL

Connector No: D6715A

Option: ~~

Repair Kit Part Number: 68087922AA

Cavity Count: 5

Fig 1: Heater-Cabin (eah, ptc) Connector End View

GCWD1006477

Courtesy of CHRYSLER

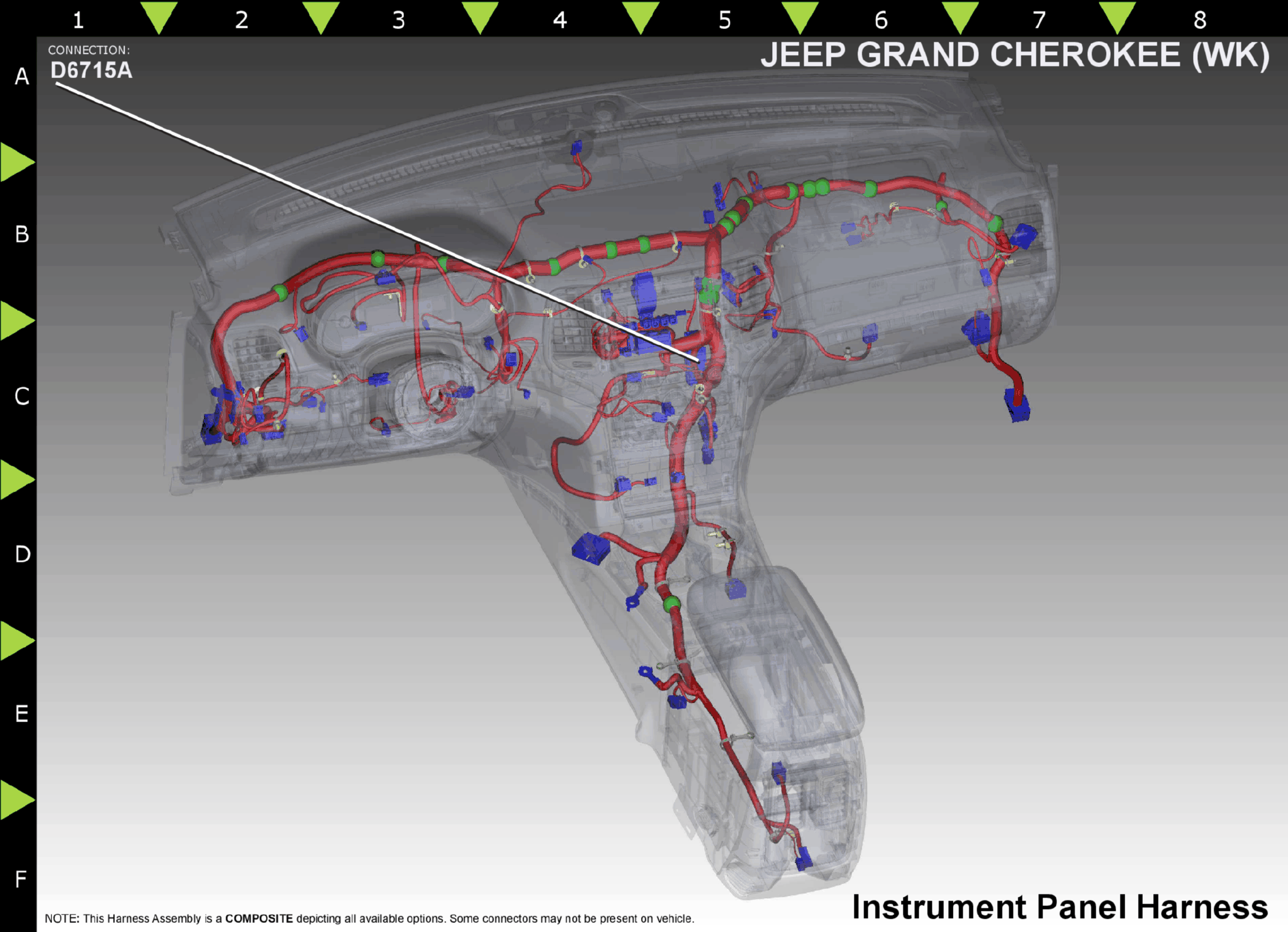

Fig 2: Heater-Cabin (eah, ptc) Component Location

GCWD1003175

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

N113

DB/OR

~~

PTC 1 RELAY OUTPUT

N/A

2

Z911

BK

10

GROUND

N/A

3

N114

DB/LB

~~

PTC 2 RELAY OUTPUT

N/A

4

Z911

BK

10

GROUND

N/A

5

N115

DB/YL

10

PTC 3 RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
