Solenoid-Short Runner Valve (6.4L) (D2549A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 55200400

Part Description: APEX 1.5 IN-LINE CONNECTOR ASSEMBLY

Connector No: D2549A

Option: 6.4L

Repair Kit Part Number: 68064996AA

Cavity Count: 4

Fig 1: Solenoid-Short Runner Valve Connector End View (6.4L)

Courtesy of CHRYSLER

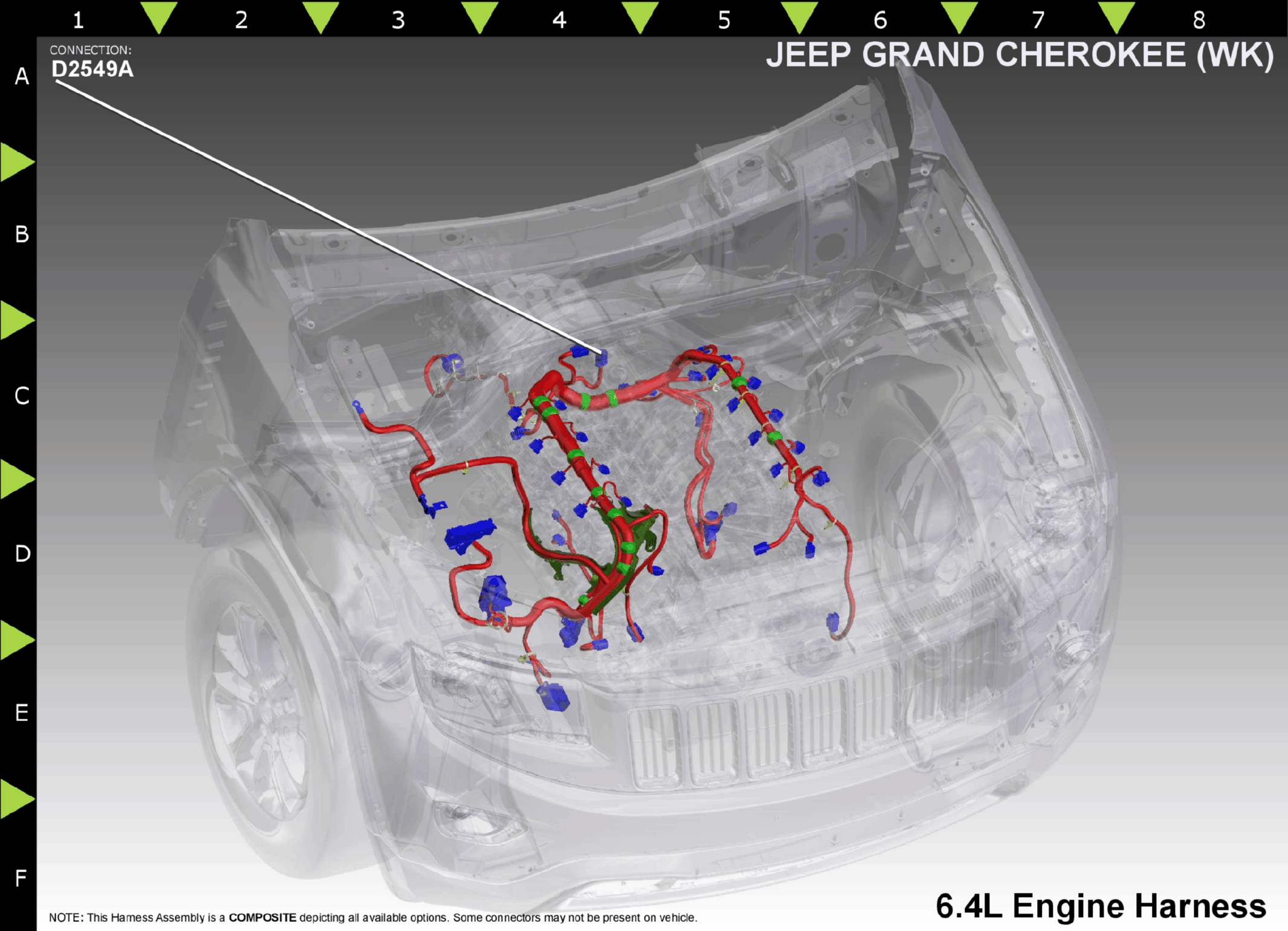

Fig 2: Solenoid-Short Runner Valve Component Location (6.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F343

BR/YL

FUSED ASD RELAY OUTPUT

N/A

Z903

GROUND

N/A

K238

DB/LG

SRV ACTUATOR CONTROL SIGNAL

N/A

K237

DB/YL

SRV SENSE OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
