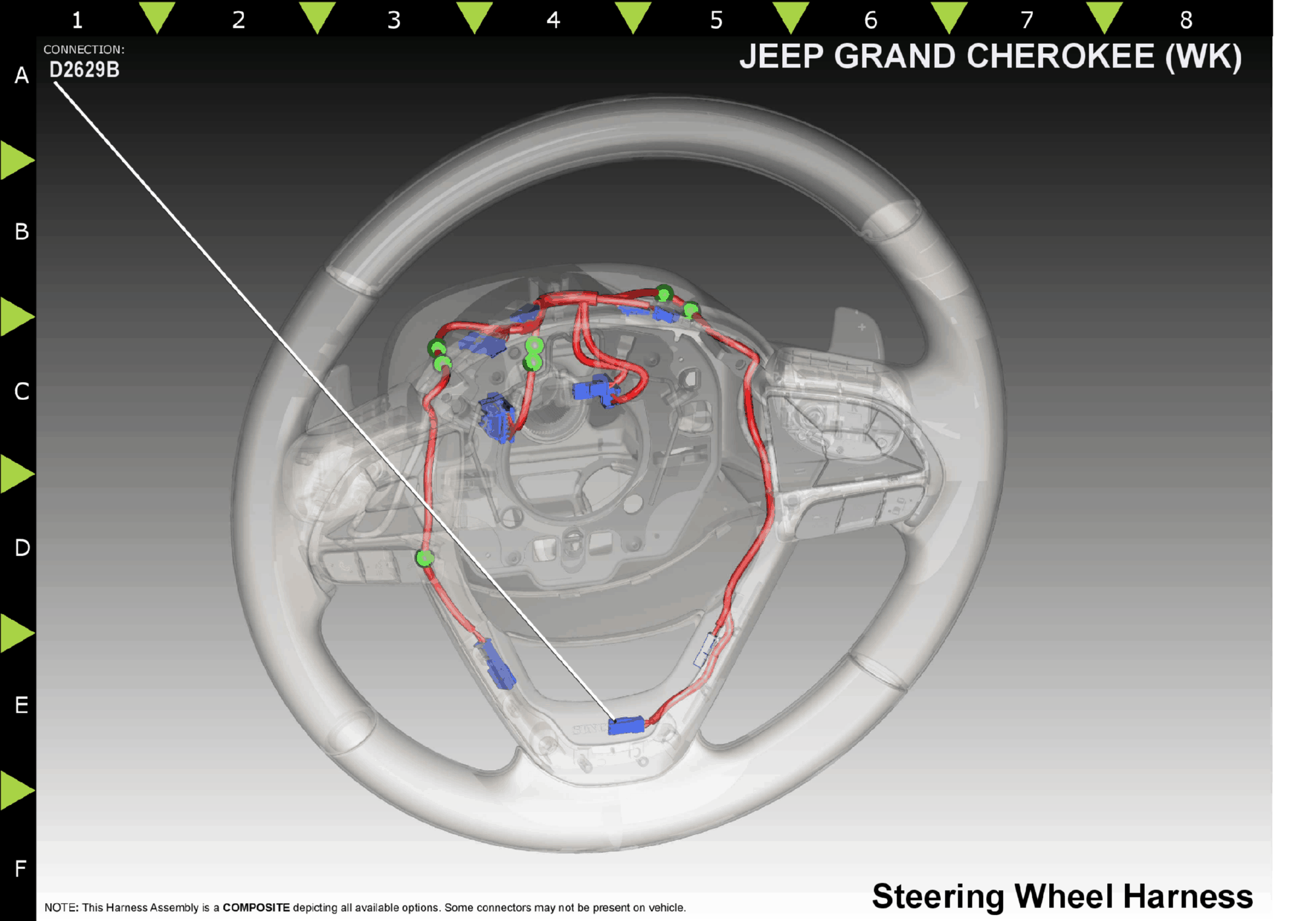

Sensor-Steering Wheel Heater C2 (Leather Heated Steering Wheel) (D2629B)
Harness-Family: Steering_Wheel
Color: BLACK
Gender: FEMALE
Part Number: 1563189-1
Part Description: Not Available
Connector No: D2629B
Option: LEATHER HEATED STEERING WHEEL
Repair Kit Part Number: Not Available
Cavity Count: 2
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | C91 | DB | 18 | HEATED STEERING WHEEL FEED | N/A | ||
| 2 | C986 | DB | 18 | HEATED STEERING WHEEL RETURN | N/A | ||
|
|||||||
