Airbag-Side Thorax-Left (Standard) (D6679A)

Harness-Family: SAB_Driver

Color: BLACK

Gender: MALE

Part Number: PPI0001460

Part Description: SRS CONNECTOR AK2 FERRITE

Connector No: D6679A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Airbag-Side Thorax-Left Connector End View (Standard)

Courtesy of CHRYSLER

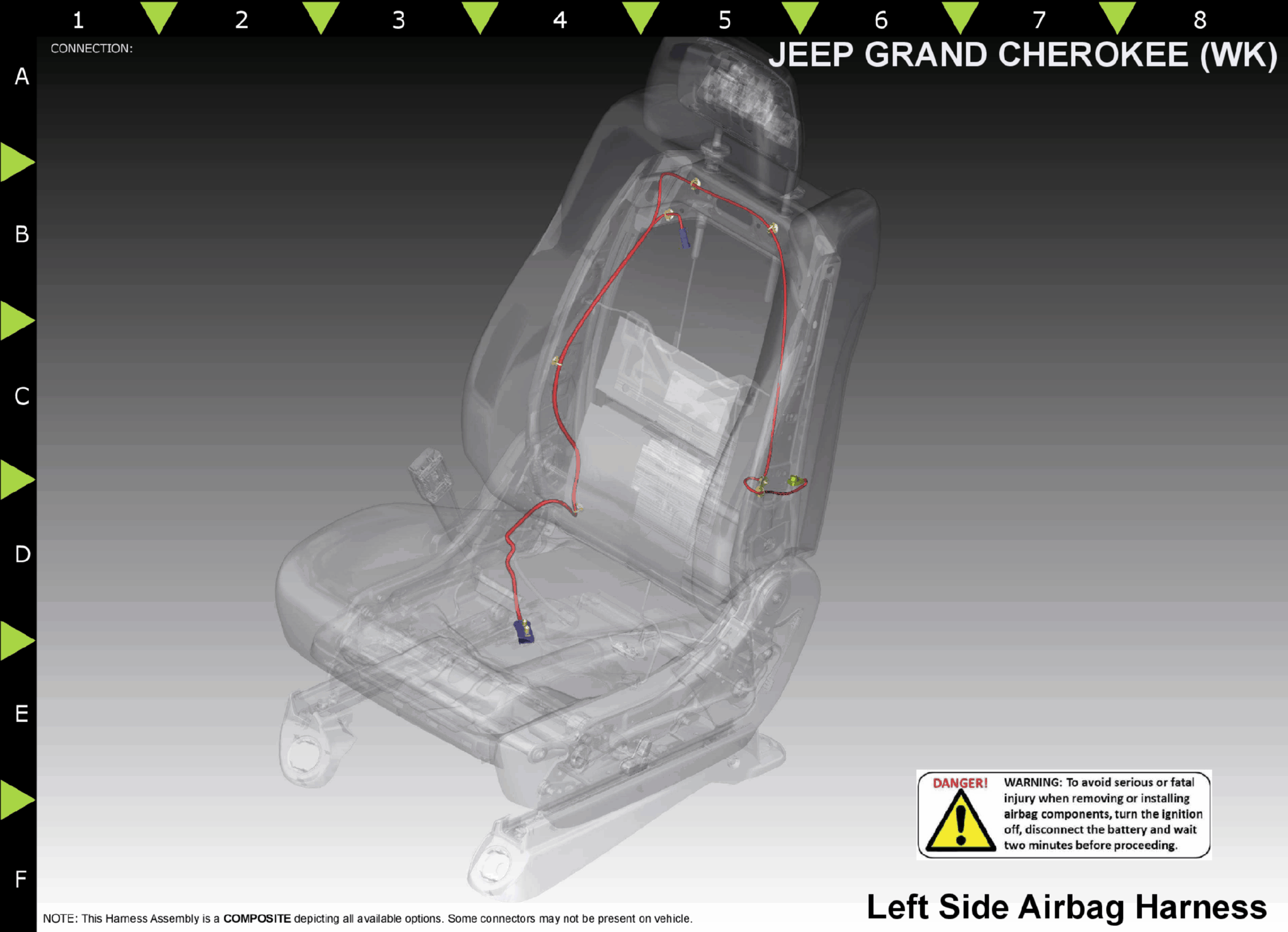

Fig 2: Airbag-Side Thorax-Left Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

LB/VT

LEFT SEAT THORAX SQUIB 1 LINE 2

N/A

LG/GY

LEFT SEAT THORAX SQUIB 1 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
