Actuator-Cooling Bypass-EGR (3.0L) (D77A)

Harness-Family: Engine

Color: AQUA

Gender: MALE

Part Number: 4510801

Part Description: Not Available

Connector No: D77A

Option: 30L

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Actuator-Cooling Bypass-EGR Connector End View (3.0L)

Courtesy of CHRYSLER

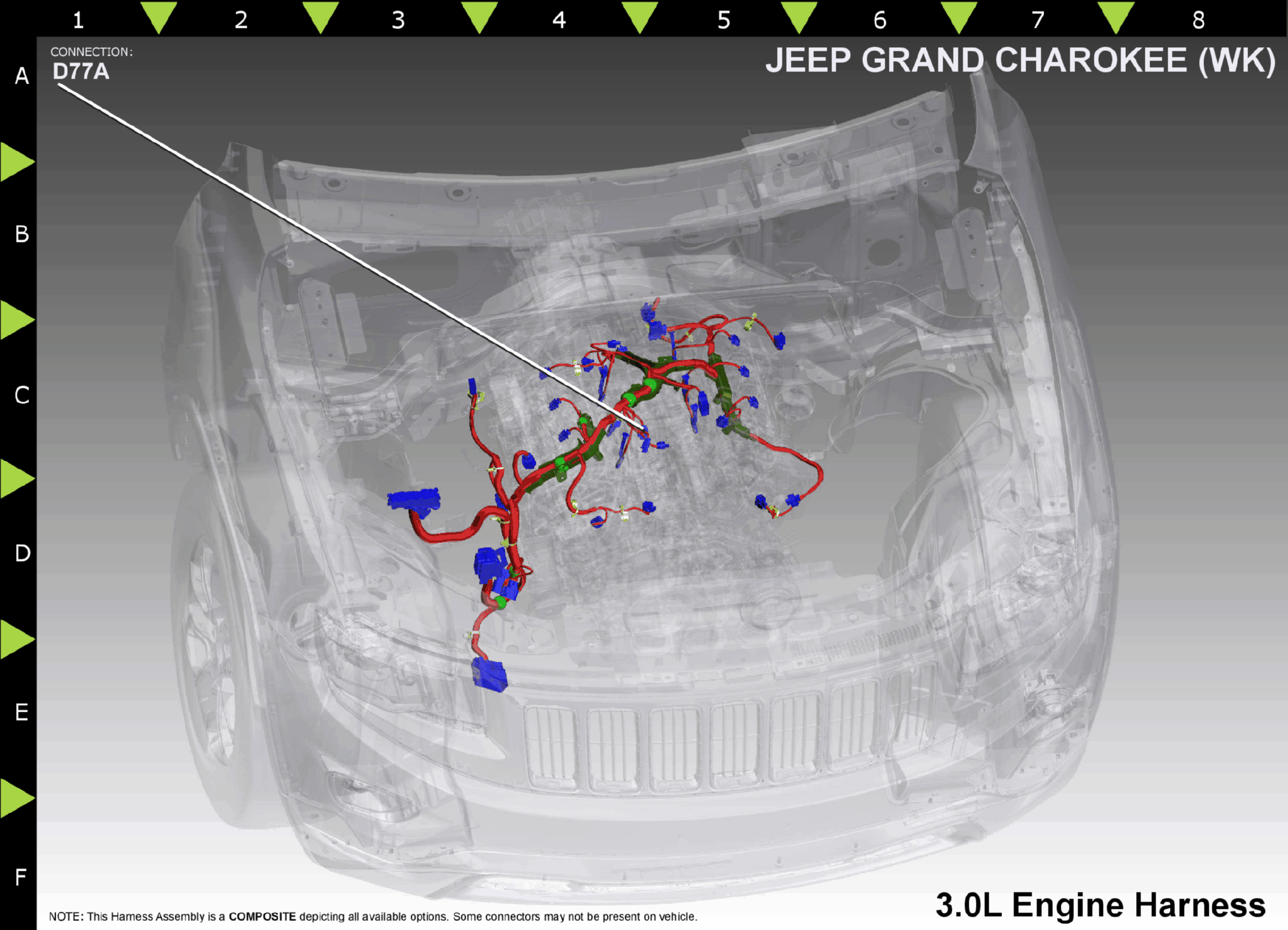

Fig 2: Actuator-Cooling Bypass-EGR Component Location (3.0L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K670

BR/LB

EGR BYPASS VALVE SIGNAL

N/A

F343

BR/YL

FUSED ASD RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
