Rear Door

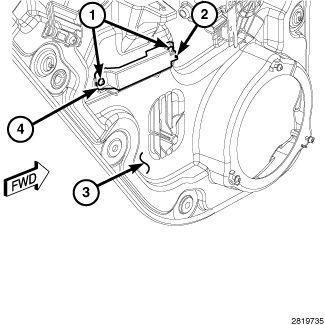

Fig 1: Low Frequency Antenna Connector Receptacle, Screws, Antenna & Carrier Plate
GC0145746Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the inside of the rear door. Refer to PANEL, REAR DOOR TRIM, REMOVAL .
  3. Disconnect the door wire harness connector from the Low Frequency (LF) antenna connector receptacle (2).
  4. Remove the two screws (1) that secure the LF antenna (4) to the rear door hardware carrier plate (3).
  5. Remove the LF antenna from the rear door.
