Tube, Sunroof Drain: Removal: Removal

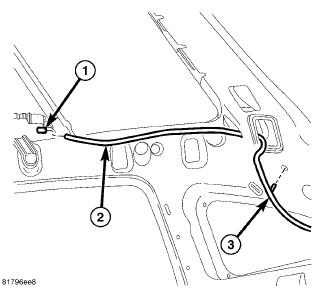

Fig 1: Front Hose, Sunroof Assembly & Clips

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Compass shown, Patriot similar.

Drop down the headliner as necessary to gain access to the drain hoses. Refer to HEADLINER, REMOVAL .
Disconnect the front hoses (2) from the sunroof assembly (1).
Release the support clips (3) and disconnect the lower grommet and remove the hose.

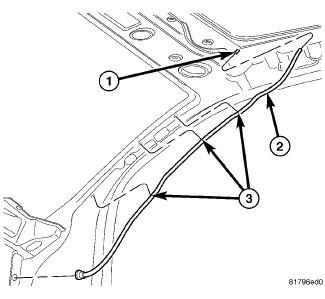

Fig 2: Rear Hose, Sunroof Assembly & Clips
Courtesy of CHRYSLER GROUP, LLC
Disconnect the rear hoses (2) from the sunroof assembly (1) and release the support clips (3).

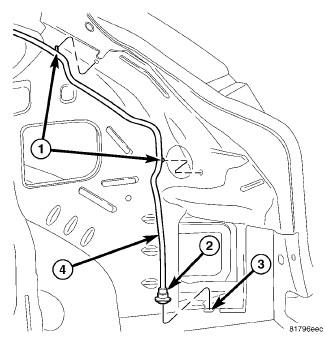

Fig 3: Rear Hose, Grommets & Body
Courtesy of CHRYSLER GROUP, LLC
Separate the remaining support clips (1).
Disconnect the grommet (2) from the body (3) and remove the rear hoses as necessary.

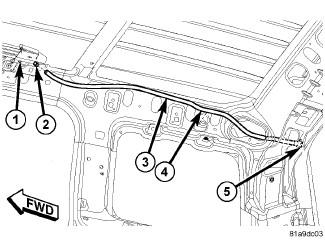

Fig 4: Sunroof Right Drain Hose & Support Clips
Courtesy of CHRYSLER GROUP, LLC
For the Patriot right rear drain hose, separate the support clips (4) and disconnect the hose ends from the sunroof (2) and the rear header (5).
