Seat Back, Front: Assembly: Assembly

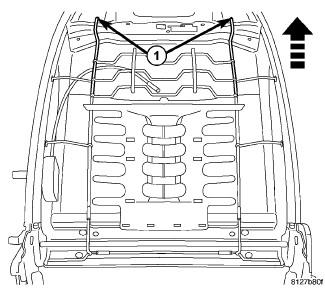

Fig 1: Upper Support Wires

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Seat mechanical part description and specifications are found in seat description. Refer to SEAT, FRONT, DESCRIPTION .

Place lumbar mat onto seat back frame and insert the upper support wires (1) into the frame.

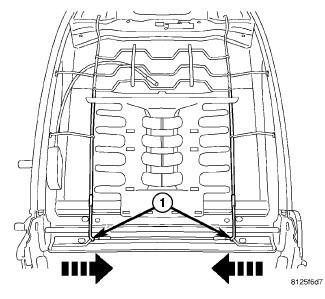

Fig 2: Lower Support Wires
Courtesy of CHRYSLER GROUP, LLC
Squeeze the lower support wires (1) together and insert into the lower frame.

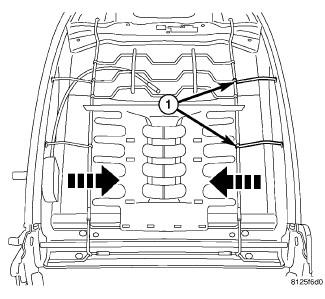

Fig 3: Side Support Wires
Courtesy of CHRYSLER GROUP, LLC
Squeeze the side support wires together and insert them into the sides of the seat back frame.

Fig 4: Lumbar Cable
Courtesy of CHRYSLER GROUP, LLC
Connect the lumbar cable housing (1) and connect the cable end (2) to the anchor.

Fig 5: Lumbar Screws
Courtesy of CHRYSLER GROUP, LLC
Install the lumbar adjuster and install the adjuster screws (1).

Fig 6: Seat Back Hog Rings
Courtesy of CHRYSLER GROUP, LLC
Position the seat back cushion on the frame and position the cover over the cushion.
Attach the seat cover (3) to the seat back cushion (1) and install new hog rings (2) as required.

Fig 7: Seat Cover Push-Pin Fasteners & Hooks
Courtesy of CHRYSLER GROUP, LLC
Install the push pins (1) and connect the inner cover to the hooks (2).

Fig 8: J-Straps
Courtesy of CHRYSLER GROUP, LLC
Install the push-pin fasteners (2) and connect the J-straps (1).

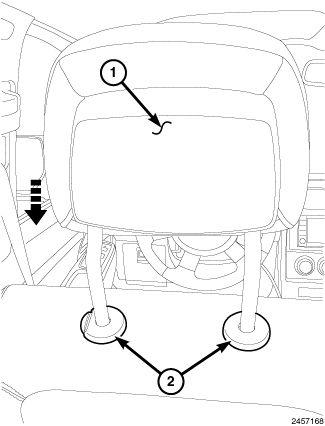

Fig 9: Headrest Sleeve Install
Courtesy of CHRYSLER GROUP, LLC
Install the headrest sleeves (2).

Fig 10: Back Panel
Courtesy of CHRYSLER GROUP, LLC
Position the seat back panel (1) onto the seat back (2) and seat fully.

Fig 11: Inserting AHR Rods Into Sleeves And Seat Into Lowest Notches
Courtesy of CHRYSLER GROUP, LLC
Install the active head restraint headrest (1). Refer to HEADREST, INSTALLATION .
Install the seat back. Refer to SEAT BACK, FRONT, INSTALLATION .
