U0037-00-Lin Bus: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

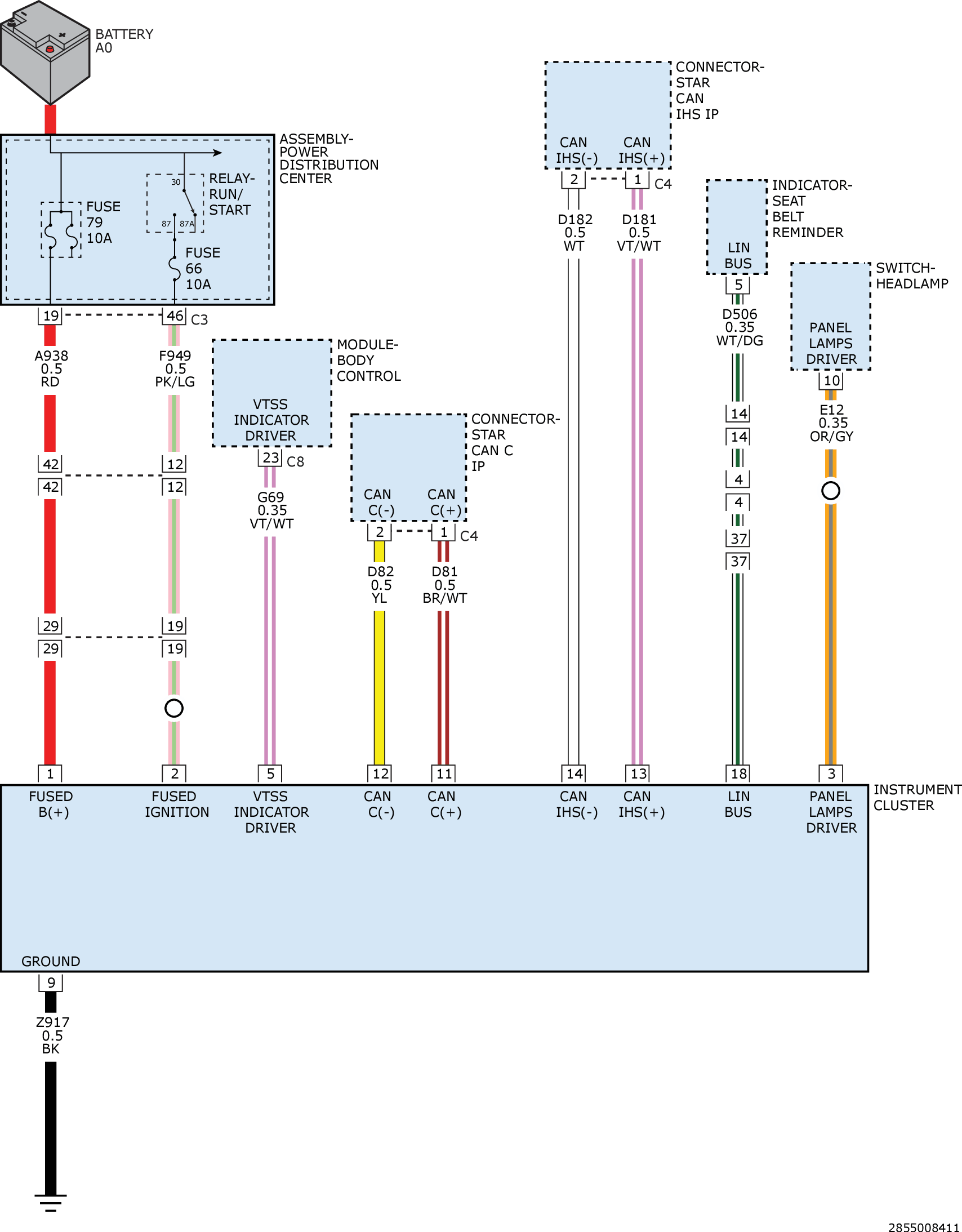

Fig 1: Instrument Cluster Circuit Diagram
GC0161433Courtesy of CHRYSLER GROUP, LLC
