Opening Dimensions: Specifications: Specifications

INDEX

DESCRIPTION	FIGURE
COMPASS AND PATRIOT
ENGINE BOX	Refer to Fig 1.
COMPASS ONLY
WINDSHIELD OPENING	Refer to Fig 2.
FRONT DOOR OPENING	Refer to Fig 3.
REAR DOOR OPENING	Refer to Fig 4.
QUARTER WINDOW OPENING	Refer to Fig 5.
LIFTGATE OPENING	Refer to Fig 6.
LIFTGATE WINDOW OPENING	Refer to Fig 7.
PATRIOT ONLY
WINDSHIELD OPENING	Refer to Fig 8.
FRONT DOOR OPENING	Refer to Fig 9.
REAR DOOR OPENING	Refer to Fig 10.
REAR QUARTER WINDOW OPENING	Refer to Fig 11.
LIFTGATE OPENING	Refer to Fig 12.
LIFTGATE WINDOW OPENING	Refer to Fig 13.

COMPASS AND PATRIOT

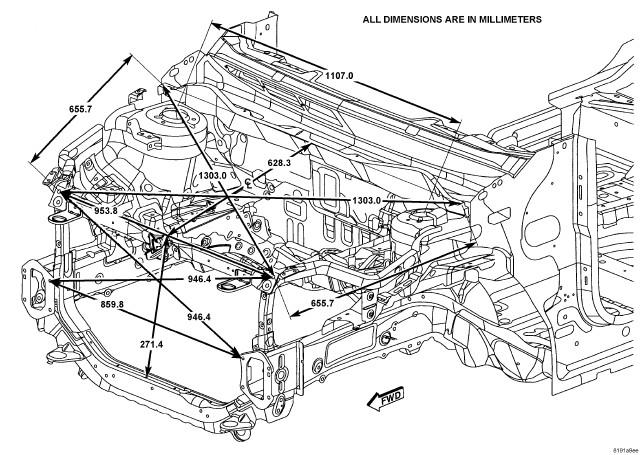

Fig 1: Engine Box

Courtesy of CHRYSLER GROUP, LLC

COMPASS ONLY

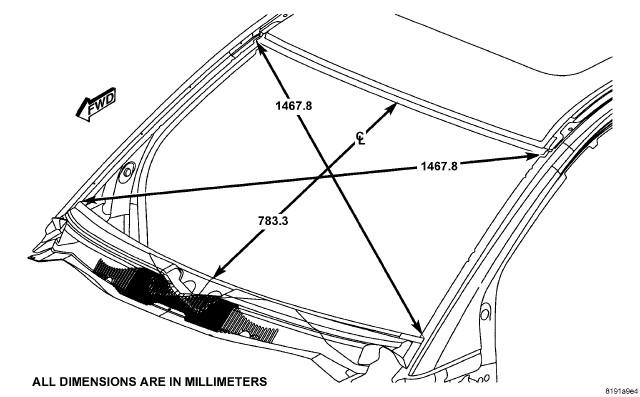

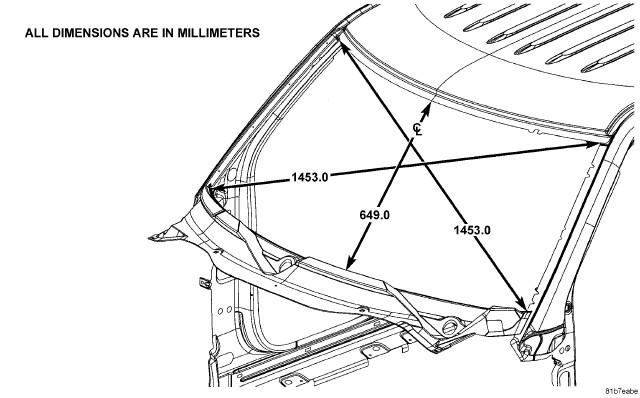

Fig 2: Windshield Opening

Courtesy of CHRYSLER GROUP, LLC

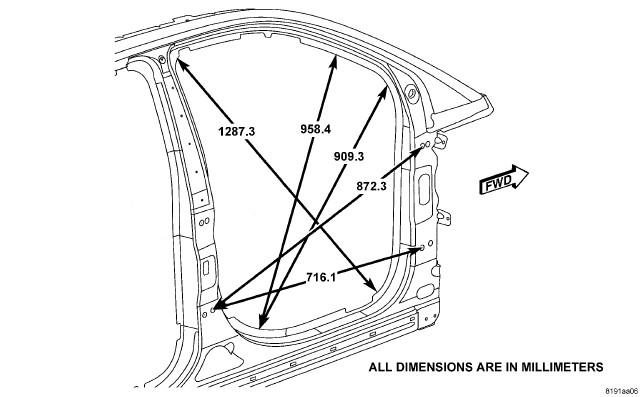

Fig 3: Front Door Opening

Courtesy of CHRYSLER GROUP, LLC

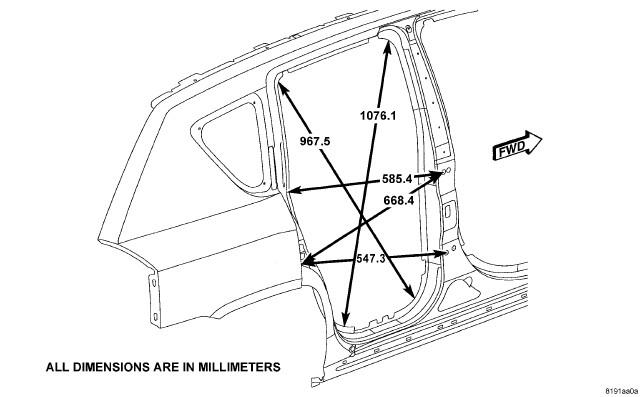

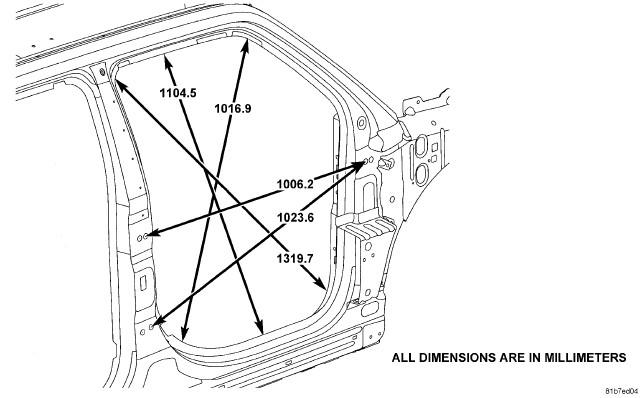

Fig 4: Rear Door Opening

Courtesy of CHRYSLER GROUP, LLC

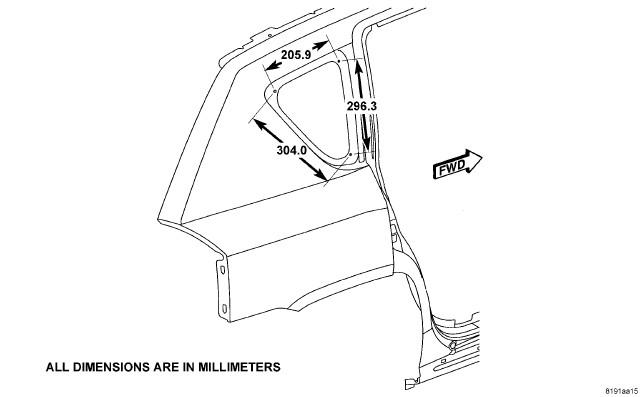

Fig 5: Quarter Window Opening

Courtesy of CHRYSLER GROUP, LLC

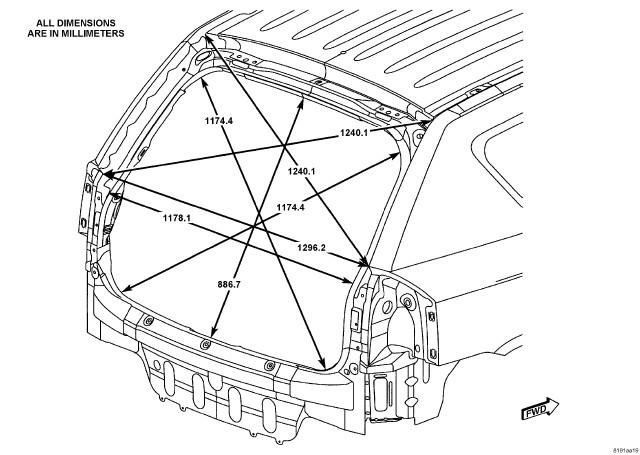

Fig 6: Liftgate Opening

Courtesy of CHRYSLER GROUP, LLC

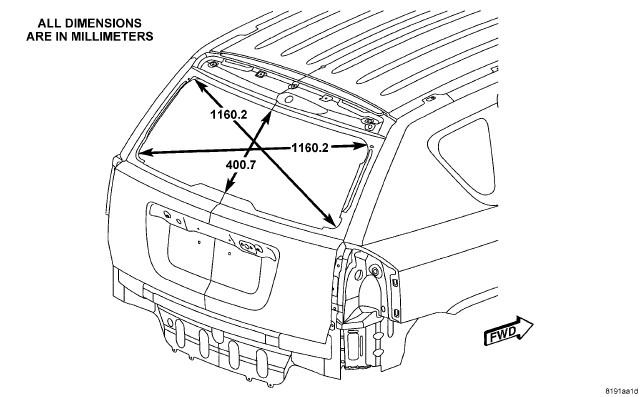

Fig 7: Liftgate Window Opening

Courtesy of CHRYSLER GROUP, LLC

PATRIOT ONLY

Fig 8: Windshield Opening

Courtesy of CHRYSLER GROUP, LLC

Fig 9: Front Door Opening

Courtesy of CHRYSLER GROUP, LLC

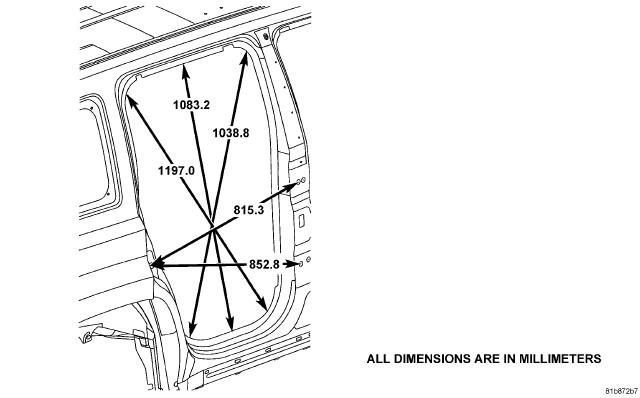

Fig 10: Rear Door Opening

Courtesy of CHRYSLER GROUP, LLC

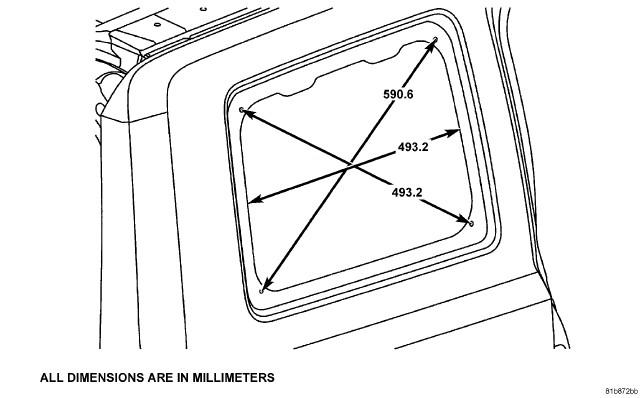

Fig 11: Rear Quarter Window Opening

Courtesy of CHRYSLER GROUP, LLC

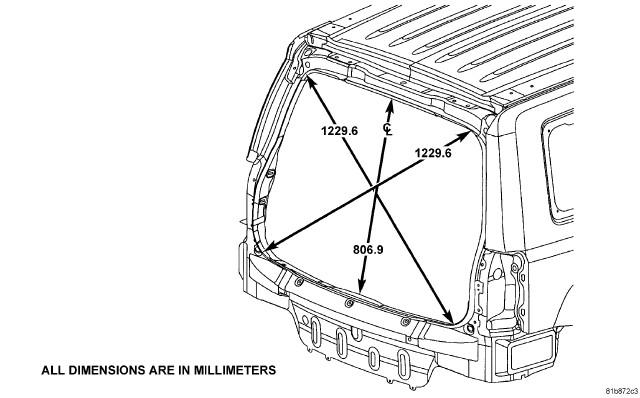

Fig 12: Liftgate Opening

Courtesy of CHRYSLER GROUP, LLC

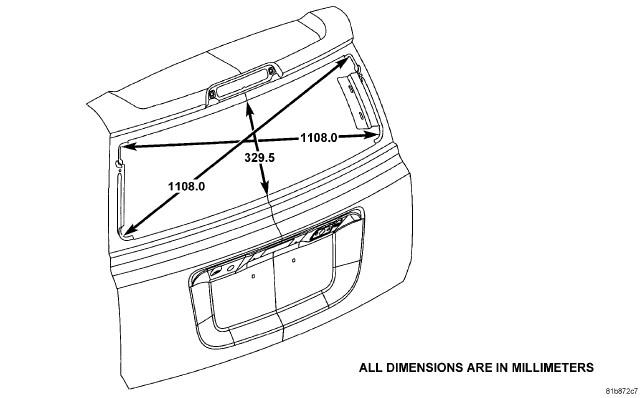

Fig 13: Liftgate Window Opening

Courtesy of CHRYSLER GROUP, LLC
