Removal

REMOVAL

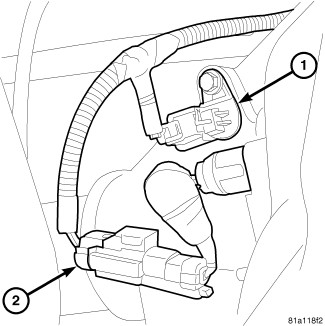

1. Remove Tru-Lok harness from the coil (1) and indicator switch (2).

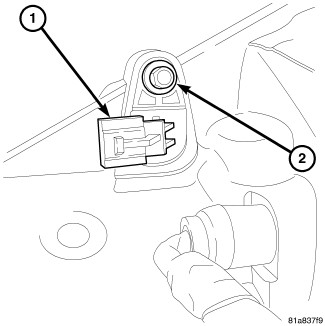

2. Remove Tru-Lok coil connector (1) bolt (2).

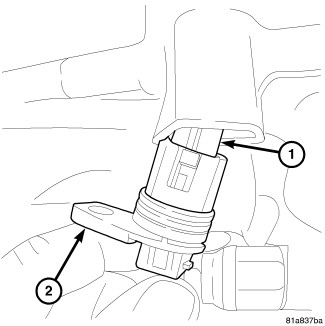

3. Remove Tru-Lok coil connector from the axle housing and remove coil harness (1) from the connector (2).





4. Remove differential.

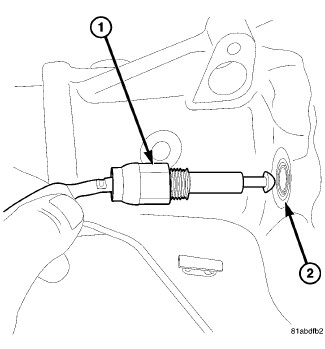

5. Remove Tru-Lok indicator switch (1) from differential housing (2).
