Removal






REMOVAL

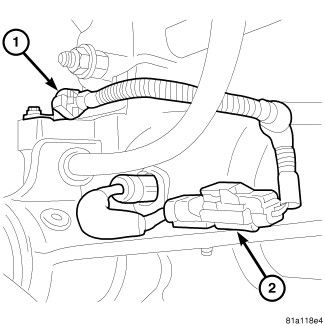

1. Remove Tru-Lok harness from the coil connector (1) and indicator switch (2).
2. Remove Tru-Lok coil connector (1) bolt.

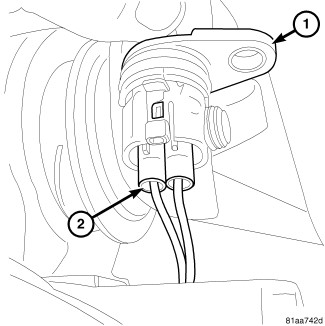

3. Remove Tru-Lok coil connector (1) from the axle housing and remove coil harness (2) from the connector (1).
4. Remove differential.

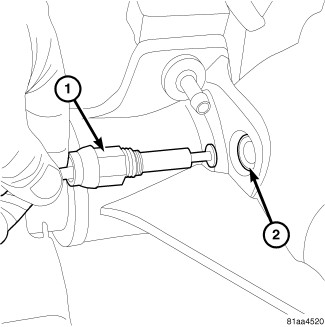

5. Remove Tru-Lok indicator switch (1) from differential housing (2).
