Transmission Range Indicator Lamp - Removal

REMOVAL

NOTE: This procedure applies only to vehicles equipped with an optional automatic transmission.





1. Disconnect and isolate the battery negative cable.

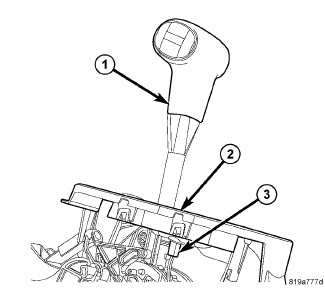

2. Remove the center floor console from over the gear selector lever (1) and bezel (2).
3. Firmly grasp the bulb socket (3) on the bottom of the bezel housing and rotate it counterclockwise about 30 degrees to unlock it.
4. Pull the socket and bulb straight out from the keyed opening in the housing.
5. Pull the base of the bulb straight out of the socket.
