Removal

REMOVAL





1. With transmission in neutral, position vehicle on hoist.
2. Remove brake components.
3. Remove wheel speed sensor from hub bearing.

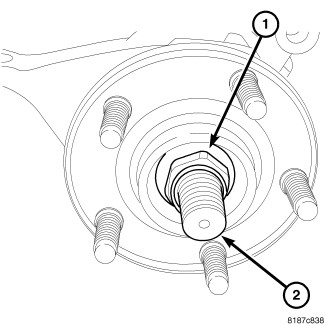

4. Remove hub nut (1) from axle shaft (2).

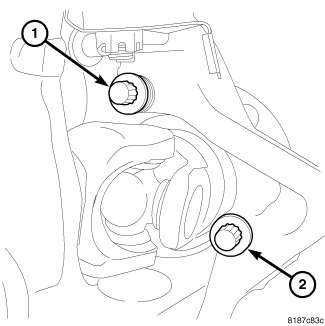

5. Remove three hub bearing bolts (1) from steering knuckle (2).

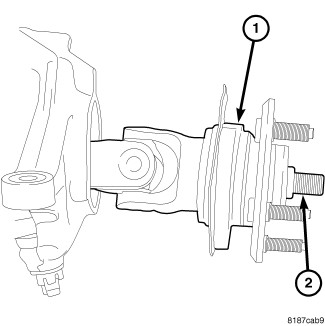

6. Remove hub bearing (1) with axle shaft (2) through steering knuckle (3).
7. Remove brake shield and hub bearing from axle.
