Front Suspension Upper Ball Joint

UPPER BALL JOINT





To properly diagnose the upper ball joint readings from the dial indicator are necessary.

1. Raise and support the vehicle.

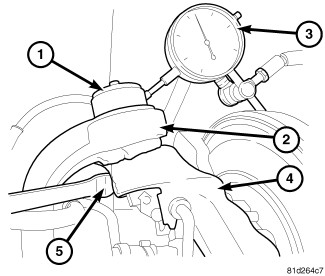

2. Mount a dial indicator (3) to the rotor or knuckle with the indicator/plunger resting on the ball joint (1).
3. Set the dial indicator (3) to zero.
4. Insert a prybar (5) between the knuckle (4) and axle tube (2).
5. Record the radial upper ball joint movement. If this reading is above 1.5 mm (0.060 in) then replacement of the upper ball joint is necessary Front Suspension Upper Ball Joint - Removal.
