Front Suspension Upper Ball Joint - Installation

INSTALLATION

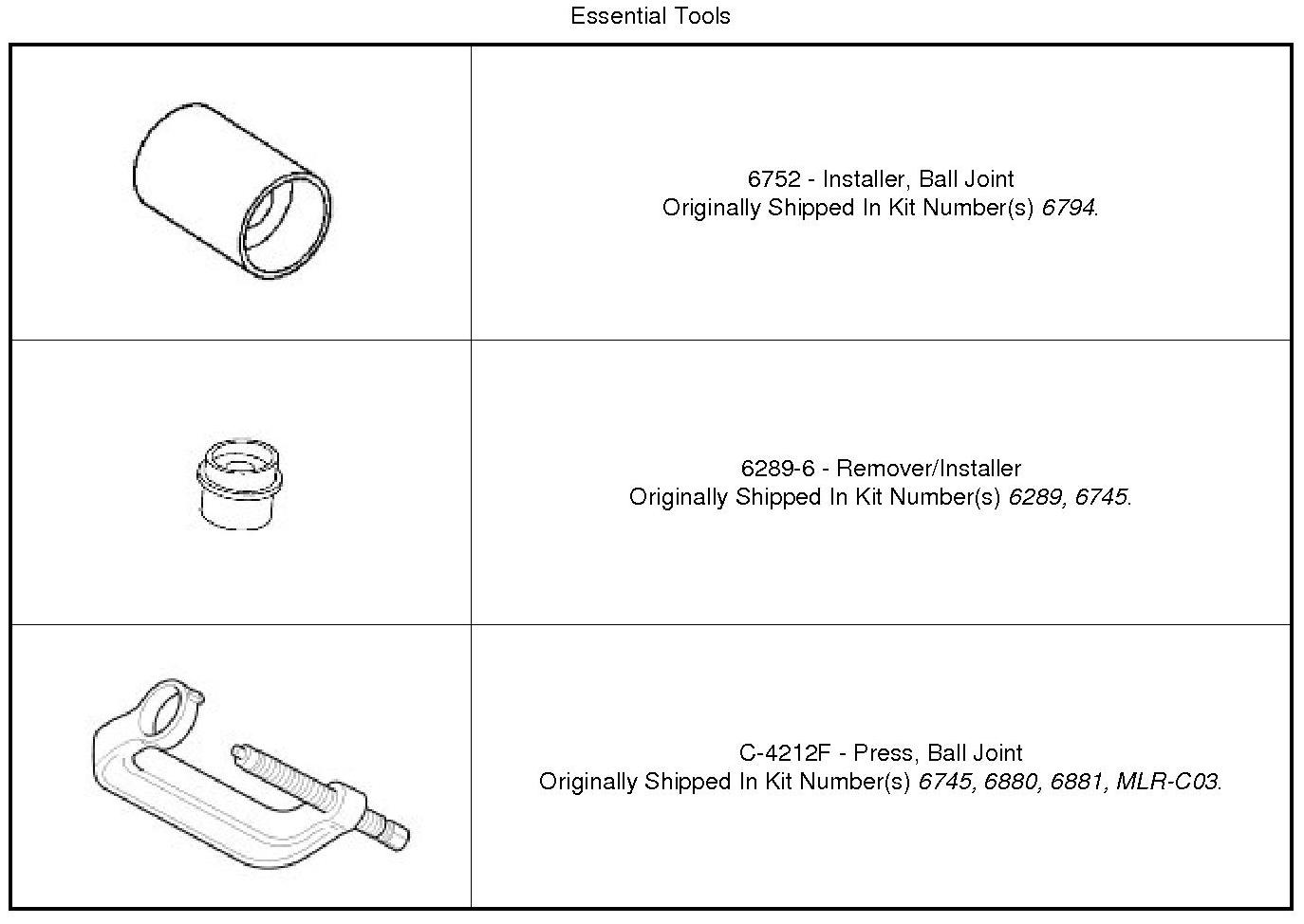

Special Tools:

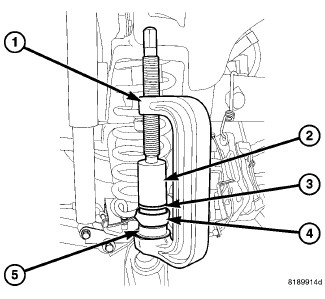

1. Position special tool (DRIVER) (2) and (RECEIVER) (5) with (PRESS) (1) as shown to install upper ball stud (3).

2. Install the axle shaft into the axle Installation 4X4 only.
3. Install the steering knuckle Front Steering Knuckle - Installation.
