Front Suspension Lower Ball Joint - Removal

REMOVAL

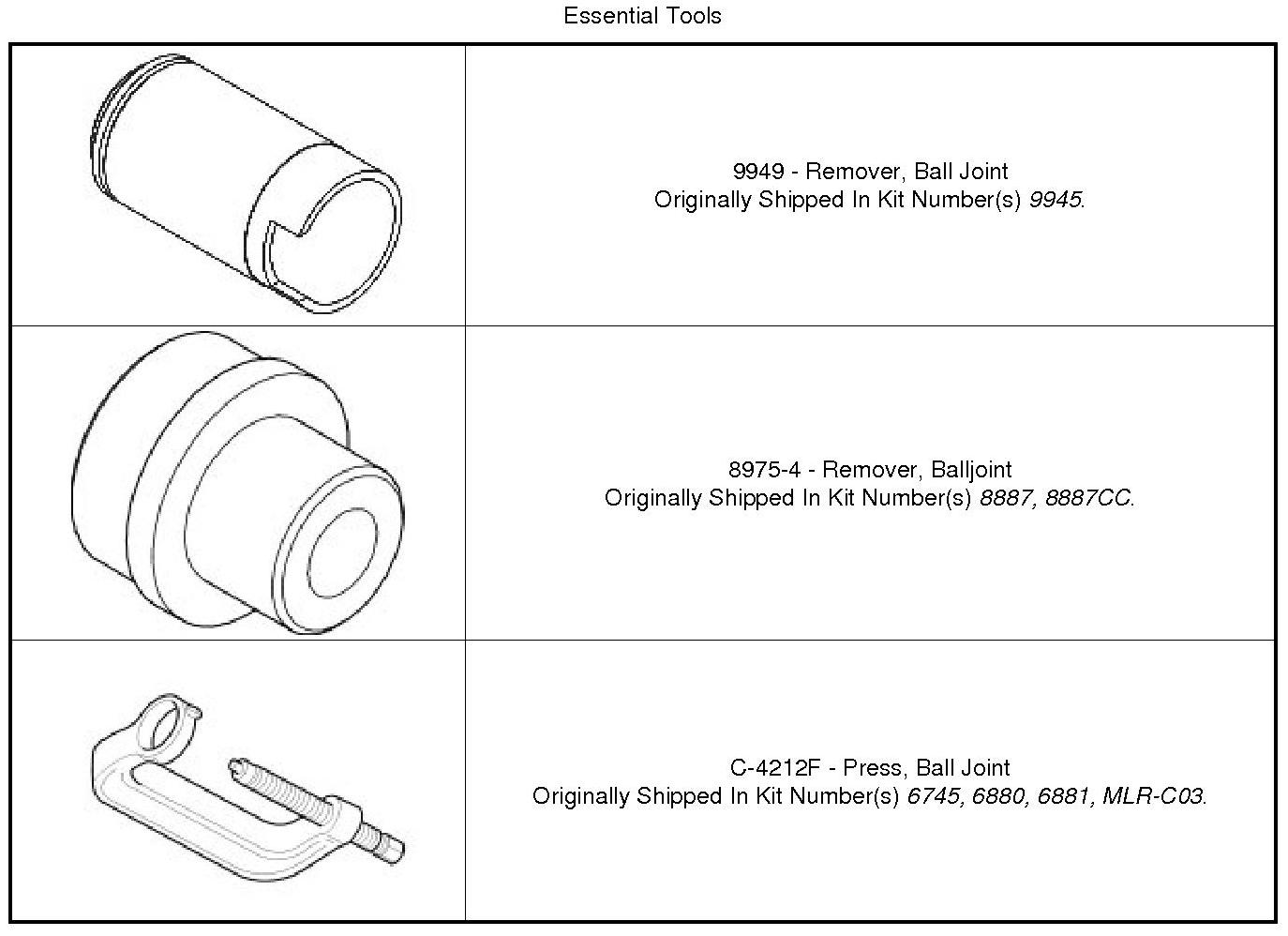

Special Tools:










1. Remove the hub/bearing Front Hub And Bearing - Removal.
2. Remove the axle shaft from the axle Removal 4X4 only.
3. Remove the steering knuckle (1)Front Steering Knuckle - Removal.

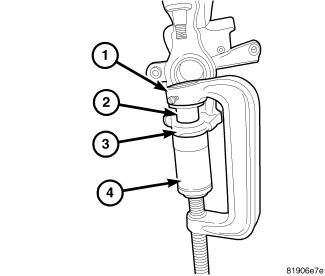

4. Position special tool (RECEIVER) (4) and (DRIVER) (2) with tool (PRESS)(1) as shown to remove lower ball stud.
