Front Suspension Lower Ball Joint - Installation

INSTALLATION

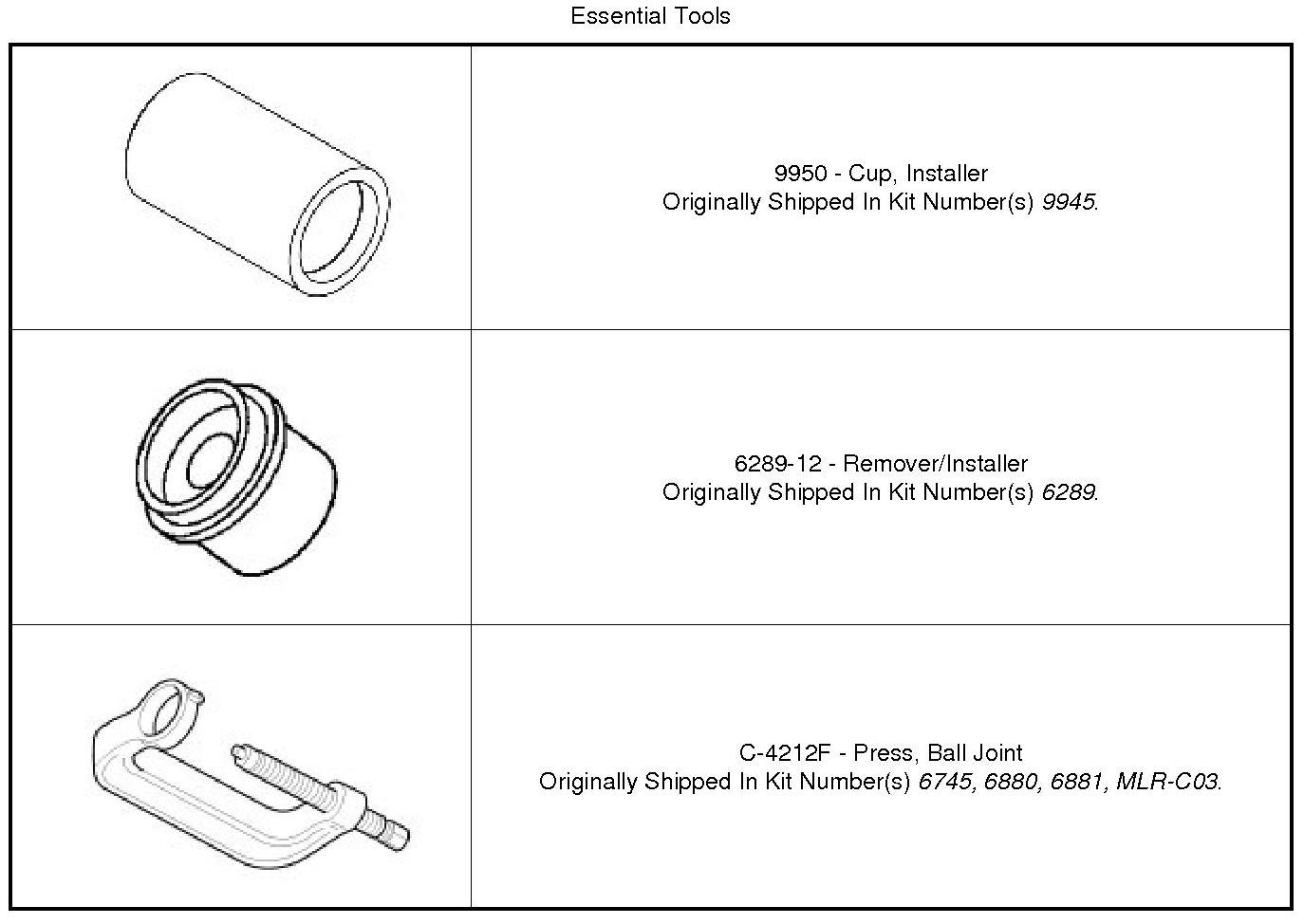

Special Tools:

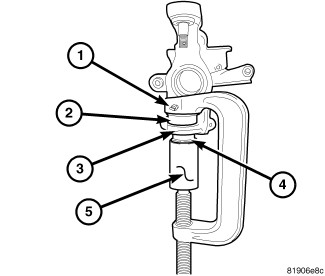

1. Position special tool (DRIVER) (5) and (RECEIVER) (2) with (PRESS) (1) as shown to install lower ball stud (4).

2. Install the axle shaft into the axle Installation.
3. Install the hub/bearing .
4. Install the steering knuckle Front Steering Knuckle - Installation.
