12 V Power Outlet

INSTALLATION

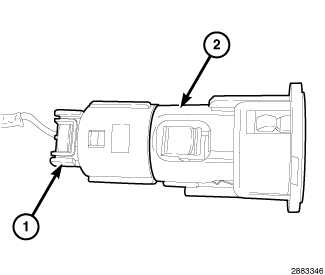

1. Connect the wire connector (1) to the power outlet receptacle (2).
2. Install the power outlet mount into the panel.
3. Align the splines on the outside of the power outlet receptacle base connector receptacle with the grooves on the inside of the mount.
4. Press firmly on the power outlet receptacle base until the retaining bosses of the mount are fully engaged in their receptacles.
5. Connect the battery negative cable.
