Clutch Starter Interlock Switch - Installation

INSTALLATION

1. Snap pedal position switch (1) on clutch master cylinder.

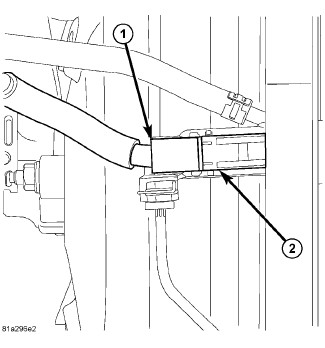

2. Connect harness (1) to clutch pedal position switch (2).
