Rear

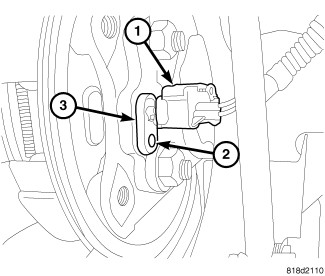

REMOVAL
1. Raise and support the vehicle.
2. Disconnect the wheel speed sensor electrical connector (1).
3. Remove the wheel speed sensor mounting bolt (2) from the rear support plate.
4. Remove the wheel speed sensor (3).
REMOVAL
1. Raise and support the vehicle.
2. Disconnect the wheel speed sensor electrical connector (1).
3. Remove the wheel speed sensor mounting bolt (2) from the rear support plate.
4. Remove the wheel speed sensor (3).
