Heated Seat Switch - Installation

INSTALLATION

NOTE: Take the proper precautions to protect the face of the center bezel from cosmetic damage while performing this procedure.

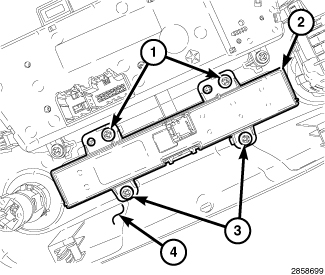

1. Position the accessory switch pod (2) onto the back of the instrument panel center bezel (4).
2. Install the four screws (1 and 3) that secure the A/C-heater control to the center bezel. Tighten the screws to 2.2 Nm (20 in. lbs.).
3. Install the instrument panel center bezel Instrument Panel Center Bezel - Installation.
4. Reconnect the negative battery cable.
5. Verify proper heated seat system operation.
