Removal

REMOVAL

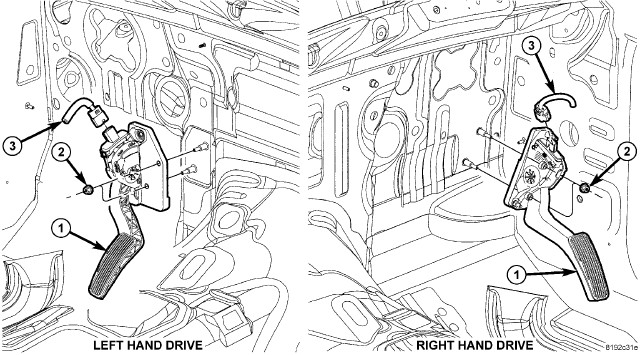

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly including the bracket.

1. Disconnect electrical connector (3) at APPS.
2. Remove two accelerator pedal mounting bracket nuts (2).
3. Remove accelerator pedal/APPS assembly (1) from vehicle.
