Variable Valve Timing Solenoid - Description

DESCRIPTION

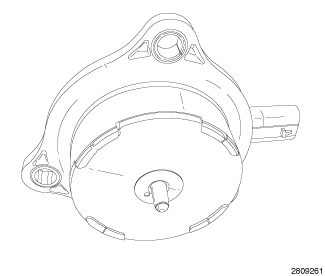

The 3.6L engine is equipped with Variable Valve Timing (VVT). This system adjusts the timing of all four camshafts independently using solenoids and oil control valves to direct oil pressure into the camshaft phaser assemblies. The camshaft phaser assembly advances and/or retards camshaft timing to improve engine performance, mid-range torque, idle quality, fuel economy, and reduce emissions. The four VVT solenoids are located on the front of the cylinder head covers. The pintle should move freely within the solenoid body. Do not attempt to disassemble the solenoids, they are not serviceable. The solenoids are identical but should be installed in the same location as removed.
