A/C Expansion Valve - Description

DESCRIPTION

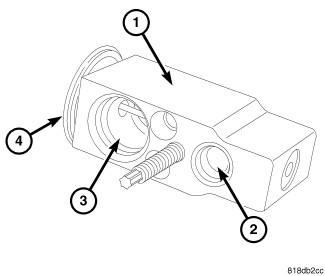

The A/C expansion valve controls the amount of refrigerant entering the A/C evaporator. The A/C expansion valve is of a thermostatic expansion valve (TXV) design and consists of an aluminum H-valve type body (1) with an inlet port (2), outlet port (3) and an integral thermal sensor (4).

The A/C expansion valve is located between the A/C refrigerant lines and the A/C evaporator in the engine compartment.
