Procedures

CLEANING

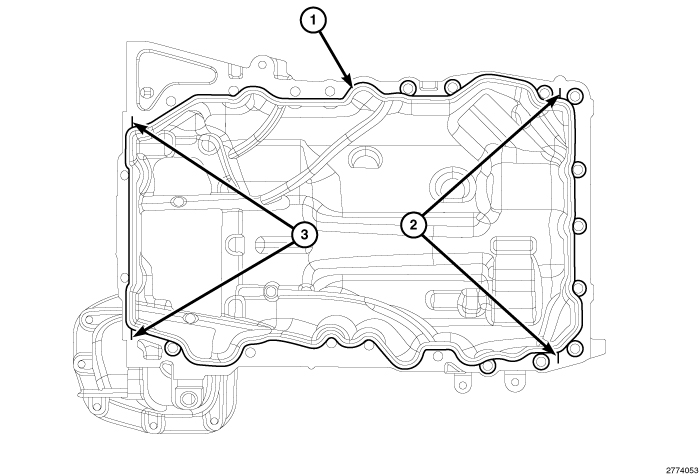

NOTE: WK upper oil pan shown, JK upper oil pan similar.






1. Clean the oil pan in solvent and wipe dry with a clean cloth.

CAUTION: Do not use oil based liquids, wire brushes, abrasive wheels or metal scrapers to clean the engine gasket surfaces. Use only isopropyl (rubbing) alcohol, along with plastic or wooden scrapers. Improper gasket surface preparation may result in engine fluid leakage.

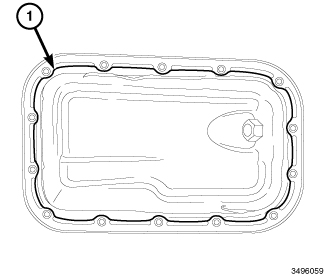

2. Remove all residual sealant (1) from the upper and lower oil pans Procedures
