Right

REMOVAL





1. Raise and support the vehicle Maintenance.
2. Remove the right front wheelhouse inner splash shield Splash Shield - Removal.
3. Disengage one main wire harness retainer (4) from the right engine mount insulator.





4. Loosen the right engine mount nut (3).
5. Using a suitable jack stand and a block of wood positioned under the oil pan, raise the engine until the weight is off of the isolator.
6. Remove the right engine mount nut (3) and bolt (2).

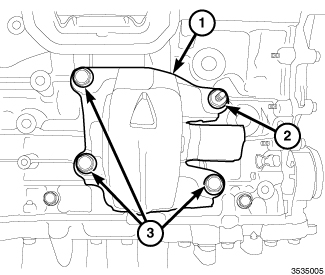

7. Remove one studbolt (2), three bolts (3) and the right engine mount isolator (1) from the vehicle.
