Accessory Drive Belt Tensioner - Installation






3.6L

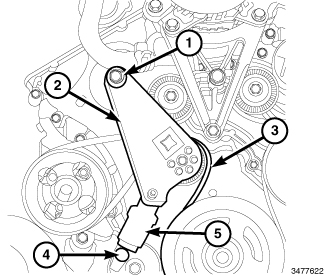

1. Position the tensioner arm onto the engine front cover. Tighten bolt (1) to 33 Nm (24 ft. lbs.).
2. Align the hydraulic belt tensioner strut to the engine front cover and install the bolt (4). Tighten bolt to 22.5 Nm (16.6 ft. lbs.).
3. Install drive belt Serpentine Accessory Drive Belt - Installation.
