Vibration Damper - Installation

INSTALLATION

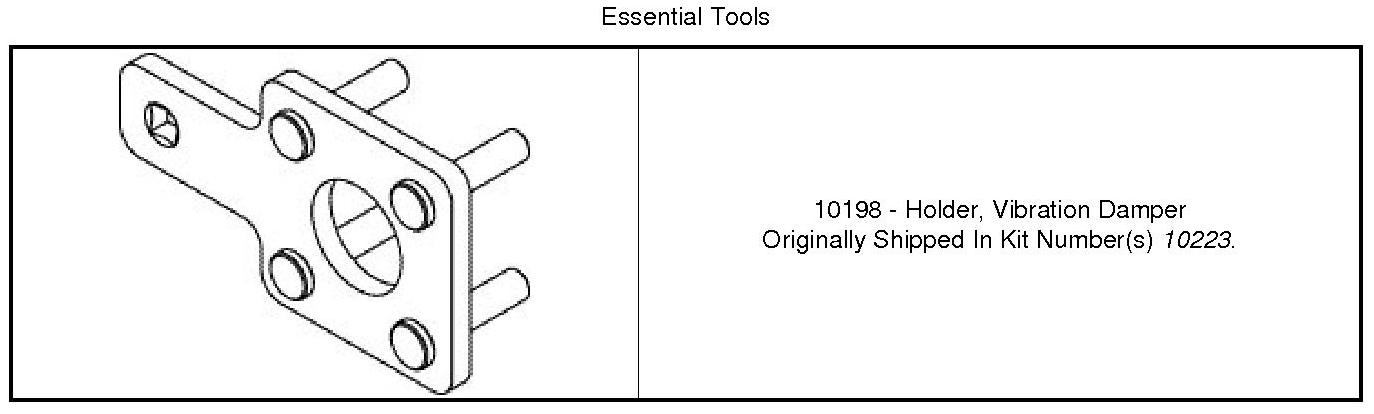

Special Tools:

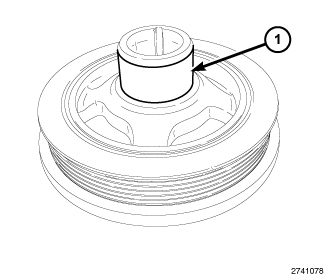

1. Apply a light coating of engine oil to the front crankshaft seal surface (1).

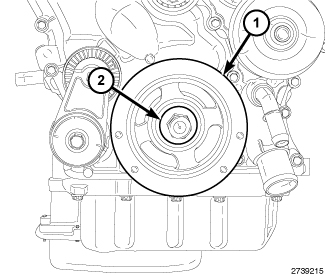

2. Align the crankshaft vibration damper (1) to the flywheel key on the crankshaft and install the damper. Seat the damper on the crankshaft sprocket.
3. Install and hand tighten the crankshaft vibration damper bolt (2).

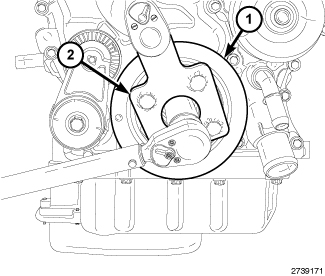

4. Hold the crankshaft vibration damper (1) with Vibration Damper Holder (2) and tighten the crankshaft vibration damper bolt to 40 Nm + 105° (30 ft. lbs. + 105°).
5. Install the accessory drive belt Serpentine Accessory Drive Belt - Installation.
