Rear

REAR





1. Raise and support the vehicle
2. Remove the tire and wheel assembly.






CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose will result. Provide a suitable support to hang the caliper securely.

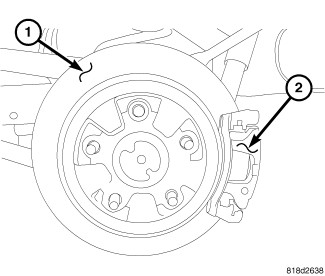

3. Remove the disc brake caliper adapter (2) Disc Brake Caliper Adapter - Removal.
4. Remove the retaining clips and rotor assembly.
