B161F

B161F-READING LAMP CONTROL CIRCUIT LOW

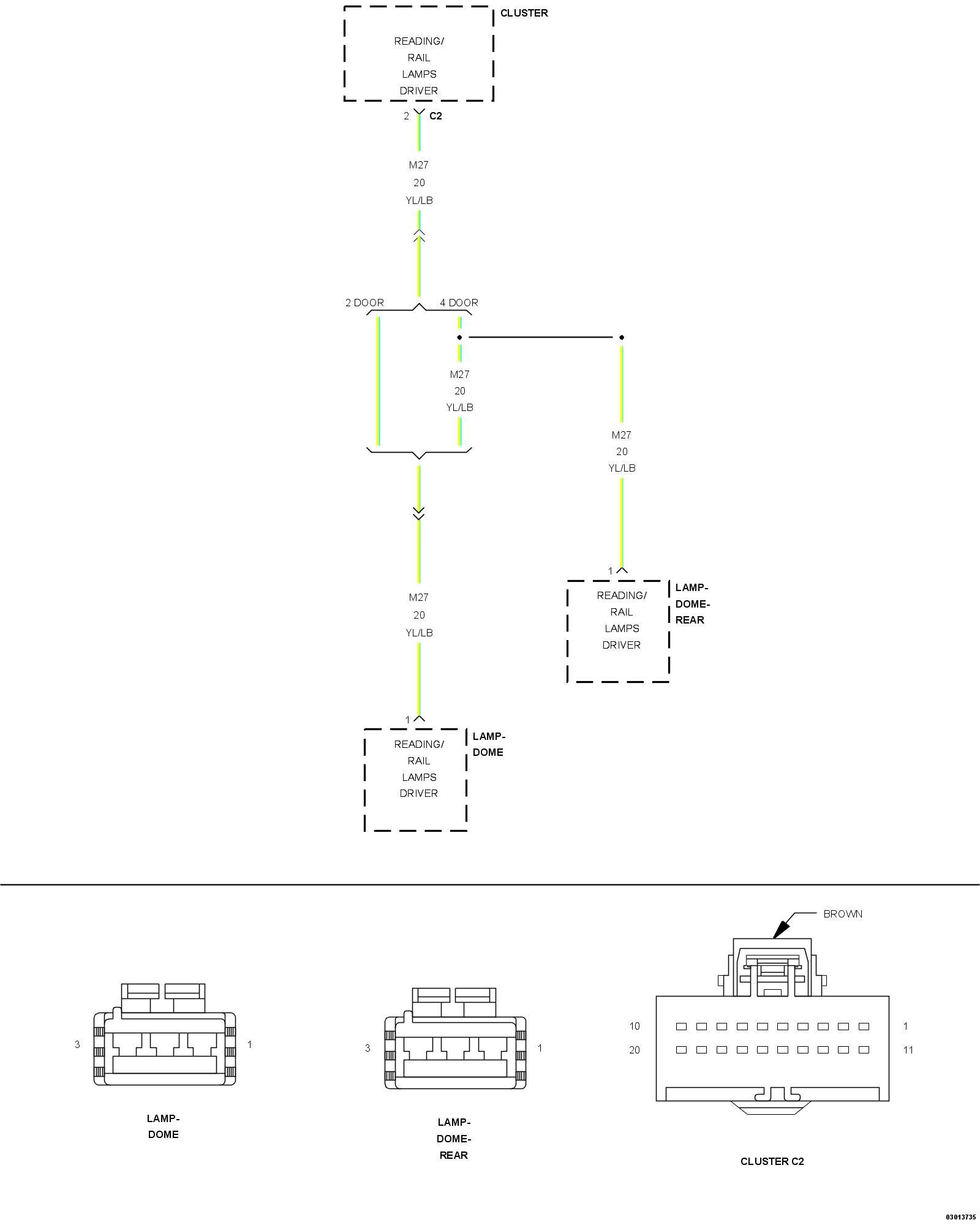

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition on.

- Set Condition:
The Cluster detects a short to ground or open on the Reading/Rail Lamps Driver circuit.





1. CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. Turn the Reading Lamps on.
3. With the scan tool, read DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK THE (M27) READING/RAIL LAMPS DRIVER CIRCUIT FOR A SHORT TO GROUND





NOTE: Inspect the Dome Lamps and Dome Lamp Assemblies. If necessary repair or replace the Dome Lamps or Dome Lamp Assemblies if damaged.

1. Turn the ignition off.
2. Disconnect the Dome Lamp harness connectors.
3. Disconnect the Cluster C2 harness connector.
4. Measure the resistance between ground and the (M27) Reading/Rail Lamps Driver circuit.

Is the resistance below 10K Ohms?

Yes

- Repair the (M27) Reading/Rail Lamps Driver circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Cluster.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
