Unit, Front Lamp: Removal: Lamp

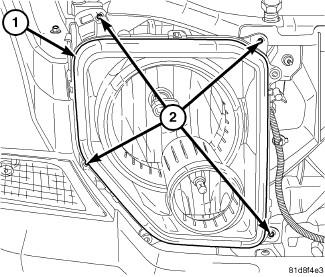

Fig 1: Front Lamp Unit
GC0086455Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the grille from the front of the vehicle. Refer to GRILLE, RADIATOR, REMOVAL .
  3. Remove the four screws (2) that secure the front lamp unit (1) to the front end module carrier.
  4. Pull the front lamp unit away from the front end module far enough to access and disconnect the wire harness connections on the back of the lamp housing.
  5. Remove the front lamp unit from the vehicle.
