Lamp, Tail Stop Turn: Removal: Lamp
Courtesy of CHRYSLER GROUP, LLC
- Disconnect and isolate the battery negative cable.

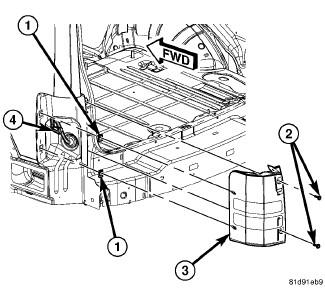

- Open the liftgate to access and remove the two screws (2) that secure the rear lamp unit (3) to the side jamb of the liftgate opening.
- Pull the outboard side of the rear lamp unit rearward far enough to unsnap the two ball studs on the outboard side of the lamp housing from the two plastic grommets (1) in the rear body sheet metal.
- Disconnect the wire harness connector (4) from the connector receptacle on the socket plate on the back of the lamp housing.
- Remove the lamp from the vehicle.
- Remove the two plastic grommets from the rear body sheet metal and discard.
