Lamp, Park And Turn Signal: Removal: Lamp

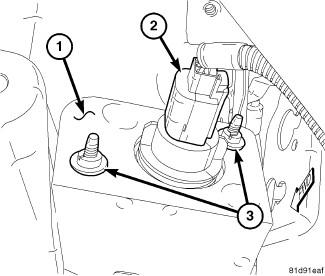

Fig 1: Wire Harness Connector

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the battery negative cable.
2. Partially remove the liner from the front of the front fender wheel house. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
3. Disconnect the wire harness connector (2) from the connector receptacle integral to the bulb socket on the back of the front park/turn signal lamp housing located on the inside of the forward-facing end of the front fascia (1).
4. Remove the two nuts (3) that secure the studs of the lamp housing to the inside surface of the front fascia.
5. Remove the lamp from the outer surface of the front fascia.
