Lamp, Park And Turn Signal: Removal: Bulb

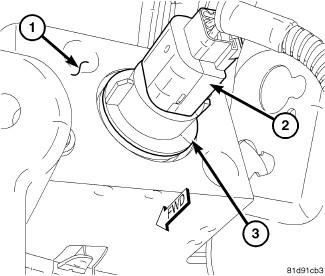

Fig 1: Wire Harness Connector

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the battery negative cable.
2. Partially remove the liner from the front of the front fender wheel house. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
3. Disconnect the wire harness connector (2) from the connector receptacle integral to the park/turn signal bulb socket (3) on the back of the park/turn signal lamp housing located on the back of the inside of the forward facing end of the front fascia (1).
4. Firmly grasp the socket and rotate it counterclockwise about 30 degrees to unlock it.
5. Pull the socket and bulb straight out from the keyed opening in the lamp housing.
6. Pull the base of the bulb straight out of the socket.
