Cable, Hood Release: Removal: Removal

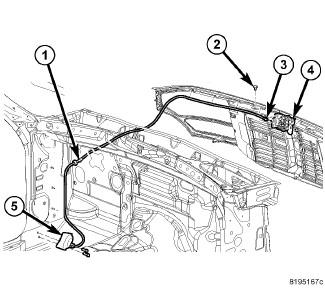

Fig 1: Latch Release Cable

Courtesy of CHRYSLER GROUP, LLC

1 - Grommet

2 - Push Pin

3 - Latch Release Cable

4 - Hood Latch

5 - Latch Release Handle

Remove the latch release cable (3) from the latch (4).
Remove the push pin (2) from the grille, carefully remove the latch release cable from under the grille and from the retaining tabs on the grille.
Remove the cowl trim cover.
Remove the bolts from the hood latch handle (5).
Pull from the inside of the vehicle to remove the cable. Disconnect any remaining attaching clips and pull the cable grommet (1) and cable from the body.
