Assembly, Slider: Removal: Removal

Fig 1: Motor Manual Open

Courtesy of CHRYSLER GROUP, LLC

1 - REAR DRIVE MOTOR

2 - FRONT DRIVE MOTOR

3 - DRIVE AXLE LOCATION

4 - 6 mm HEX SOCKET

Remove the front drive assembly. Refer to ASSEMBLY, DRIVE, FRONT, REMOVAL .
Manually move the rear drive assembly to open about 10 inches.

Fig 2: Nylon Pins, Cover Assembly And Drive Assembly Cap
Courtesy of CHRYSLER GROUP, LLC
Separate the headliner hook and loop strip (3) and expose the drive mechanism.
Remove the five screws (2) and separate the cover assembly from the rear drive (1).

Fig 3: Wind Deflector, Tab And The Rail
Courtesy of CHRYSLER GROUP, LLC
Pull the cover assembly forward and disengage the sliders (2) from the rails (1).

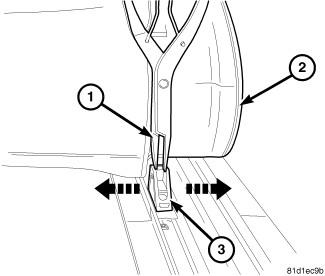

Fig 4: Lift Arm, Locators, Rear Sliders And Pins
Courtesy of CHRYSLER GROUP, LLC
Roll the cover assembly (2) back until you get to the slider (3) being serviced.
Using a spreading tool (1) or equivalent, spread the slider assembly (3) apart and separate the lift arms from the slider.
CAUTION:
Use care when separating the lift arms from the sliders to avoid losing the springs.

Fig 5: Wind Deflector, Tab And The Rail
Courtesy of CHRYSLER GROUP, LLC
Remove the slider (2) being serviced from the track (1).
