Cover, Steering Column Opening: Removal: Removal

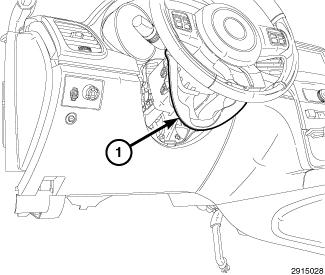

Fig 1: Steering Column Trim Ring

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate battery negative cable.
2. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the steering column trim ring (1).
   Fig 2: Retaining Clips And Cover

   Courtesy of CHRYSLER GROUP, LLC
3. Remove the five cover screws (2).
4. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the retaining clips and remove the cover (1).
