Seat Back, Front: Disassembly: Disassembly

Fig 1: Release Button, Thin Wire Type Tool & AHR

Courtesy of CHRYSLER GROUP, LLC

NOTE:

For seat mechanical part description and specifications, refer to SEAT, FRONT, DESCRIPTION .

Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, WARNING .
Remove the seat back. Refer to SEAT BACK, FRONT, REMOVAL .
Remove the active head restraint headrest (3). Refer to HEADREST, REMOVAL .

Fig 2: Back Panel
Courtesy of CHRYSLER GROUP, LLC
Remove the lumbar handle, if equipped.
Remove the back panel (1).

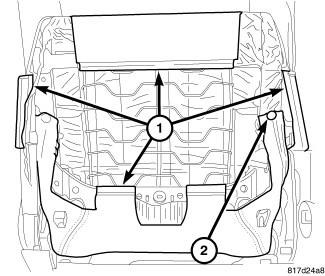

Fig 3: J-Straps
Courtesy of CHRYSLER GROUP, LLC
Separate the J-straps (1) and the push-pin fasteners (2).

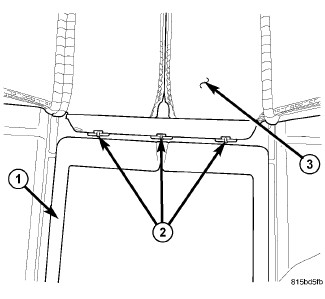

Fig 4: Push-Pin Fasteners & Hooks
Courtesy of CHRYSLER GROUP, LLC
Release the push-pin fasteners (1) and release the cover from the hooks (2).

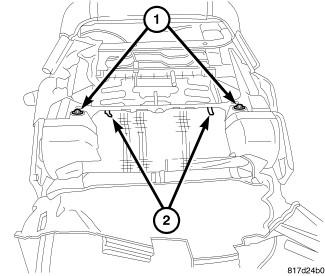

Fig 5: Seat Back Hog Rings
Courtesy of CHRYSLER GROUP, LLC
Separate the seat cover (3) from the foam cushion (1) and cut off all hog rings (2) attaching cover to the foam.

Fig 6: Removing Headrest Sleeves
Courtesy of CHRYSLER GROUP, LLC
Using a small flat bladed tool (4) or equivalent, release the headrest sleeve retaining tabs through the openings (2) in the sleeve support piece.
Using a soft hammer (3) or equivalent, remove the headrest sleeves (1).
Remove the seat back cover and cushion.

Fig 7: Lumbar Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the lumbar adjuster screws (1).

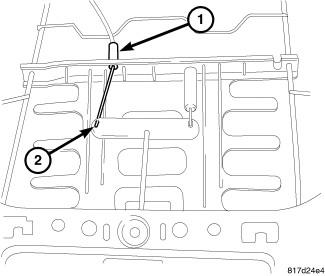

Fig 8: Lumbar Cable
Courtesy of CHRYSLER GROUP, LLC
Disconnect the lumbar cable (2) and separate the cable housing (1).

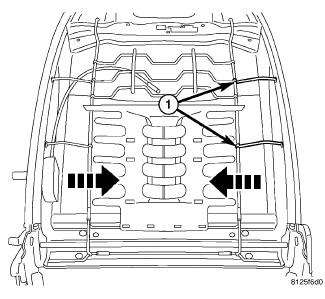

Fig 9: Lumbar Mat Side Wires
Courtesy of CHRYSLER GROUP, LLC
Release the lumbar mat side wires (1) by pulling out on the wire supports and then pulling them in.

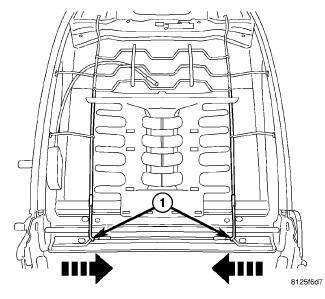

Fig 10: Lower Support Wires
Courtesy of CHRYSLER GROUP, LLC
Squeeze the lower support wires (1) in and release the lower wires.

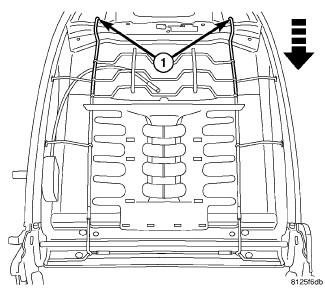

Fig 11: Upper Support Wires
Courtesy of CHRYSLER GROUP, LLC
Pull the upper support wires (1) down and release the lumbar mat from the seat back frame.
