Cover, Seat Cushion, Rear: Disassembly: Disassembly

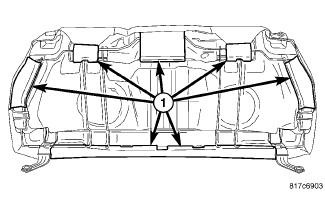

Fig 1: Rear Seat Cushion J-Straps

Courtesy of CHRYSLER GROUP, LLC

1. Remove the seat cushion. Refer to REMOVAL .
2. Separate the J-straps (1) from the seat frame.
   Fig 2: Cushion Cover - Hog Rings

   Courtesy of CHRYSLER GROUP, LLC

   1 - SEAT FOAM CUSHION

   2 - HOG RINGS

   3 - SEAT CUSHION COVER

3. Remove the hog rings (2) connecting the seat cover (3) to the seat cushion foam (1) and separate from the seat cushion frame.
