Backup Lamp Switch - Installation

INSTALLATION

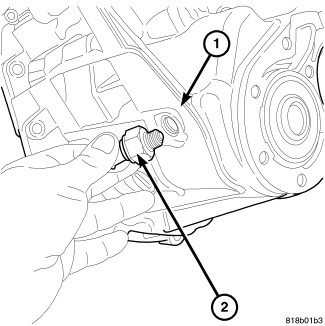

1. Install back-up lamp switch (2). Teflon tape or equivalent must be used on switch threads. Tighten switch to 24 Nm (18 ft. lbs.). CAUTION: Do not overtighten switch.

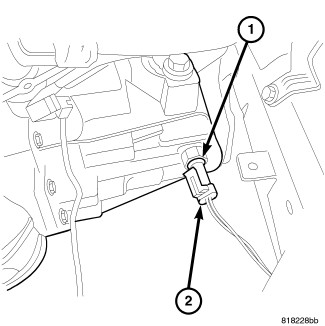

2. Connect back-up lamp switch connector (2).
3. Lower vehicle.
4. Verify back-up lamp operation.
