DESCRIPTION

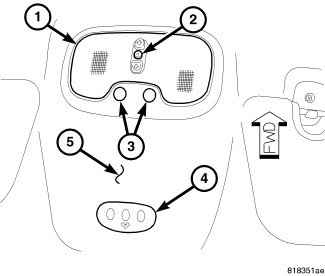

The power sunroof switch (2) is a combination push-button and rocker switch module mounted in the Courtesy/Reading Lamp assembly (1). The sunroof switch is a direct contact unit that is directly wired to the sunroof motor/module assembly. The sunroof switch performs the following functions:

- Power sunroof open (back of switch pushed)
- Power sunroof express open (back of switch pushed and released)
- Power sunroof closed (front of switch pushed)
- Power sunroof express closed (front of switch pushed and released)
- Power sunroof vent (switch center button pushed)

The power sunroof switch cannot be repaired. If the individual components are damaged or inoperative the switch assembly must be replaced, Sunroof Switch - Removal.
