Seat Back: Description and Operation
DESCRIPTION

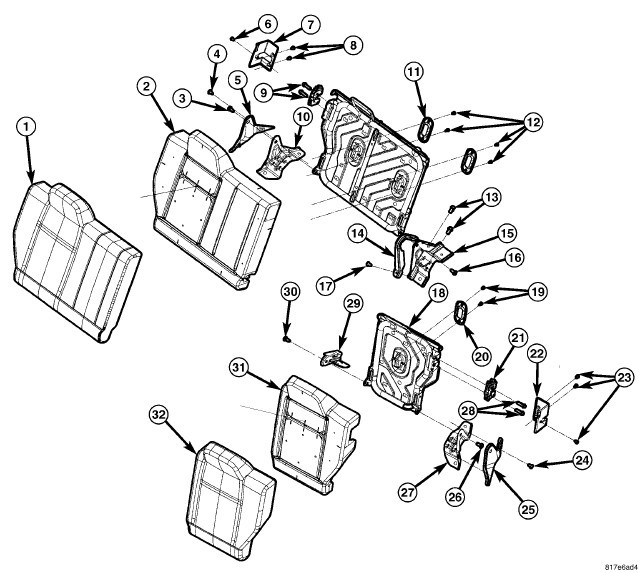

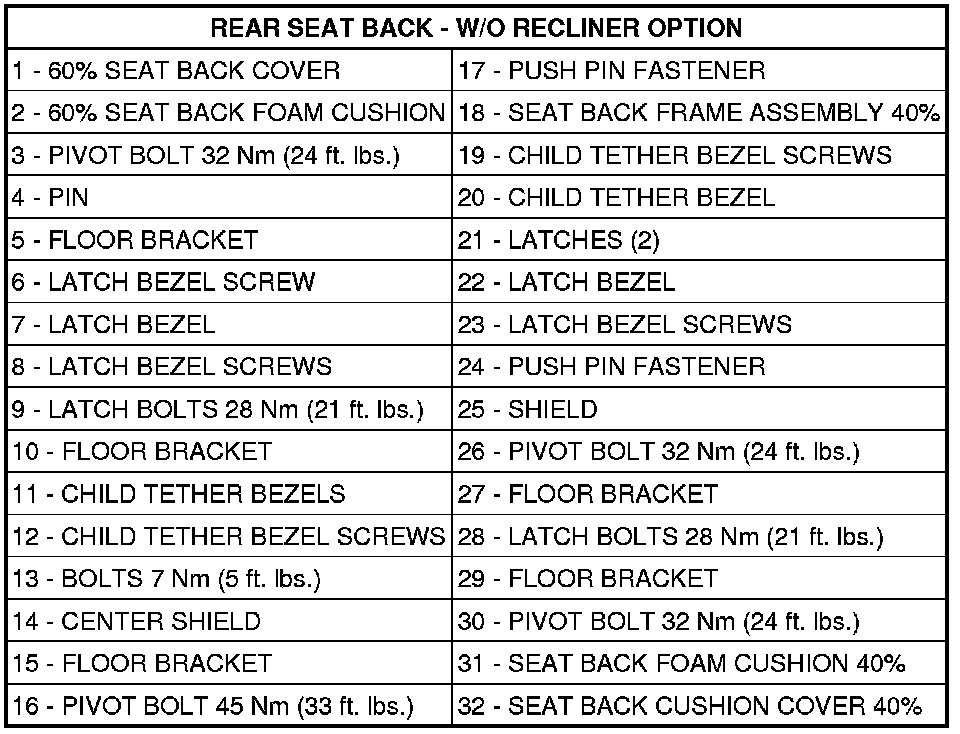

Figure 1 - REAR
SEAT BACK
- W/O RECLINER OPTION

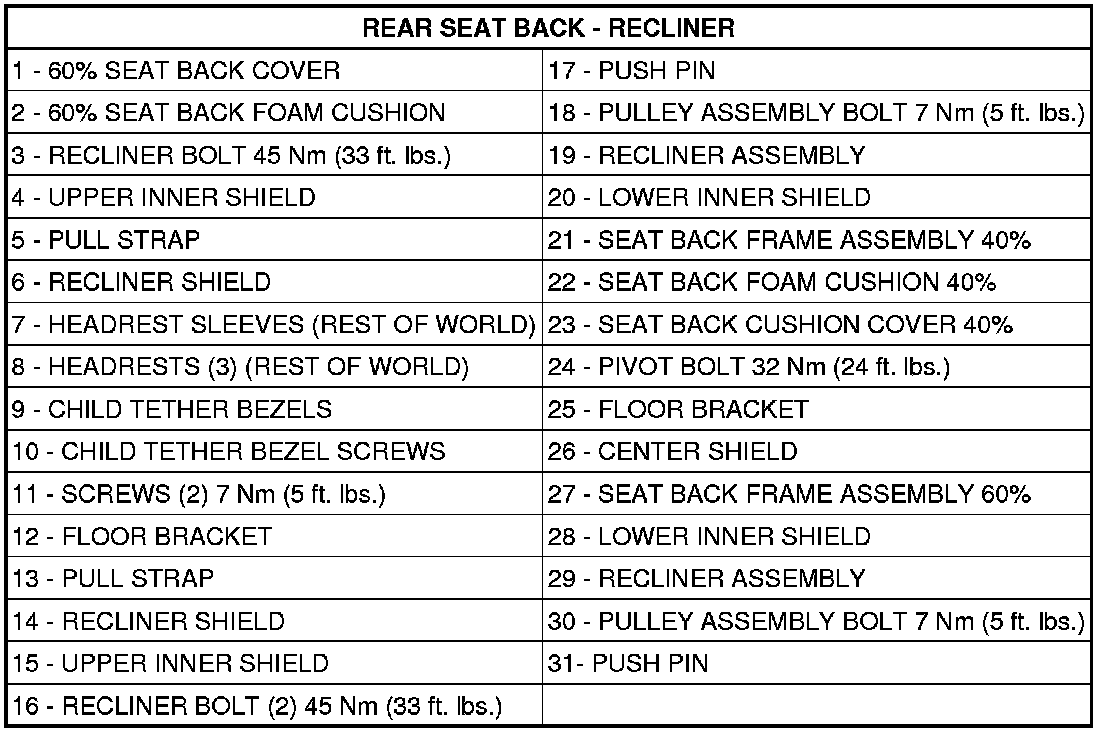

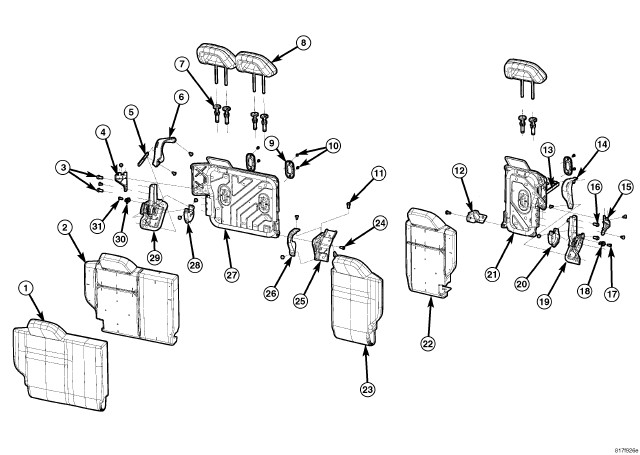

Figure 2 - REAR
SEAT BACK
- RECLINER
